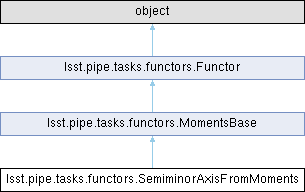

Inheritance diagram for lsst.pipe.tasks.functors.SemiminorAxisFromMoments:

Public Member Functions
	columns (self)

	sky_uu (self, df)

	sky_vv (self, df)

	sky_uv (self, df)

	name (self)

	noDup (self)

	multilevelColumns (self, data, columnIndex=None, returnTuple=False)

	__call__ (self, data, dropna=False)

	difference (self, data1, data2, **kwargs)

	fail (self, df)

	shortname (self)

Public Attributes
	shape_xx = shape_xx

	shape_yy = shape_yy

	shape_xy = shape_xy

	colCD_1_1 = colCD_1_1

	colCD_1_2 = colCD_1_2

	colCD_2_1 = colCD_2_1

	colCD_2_2 = colCD_2_2

	filt = filt

str	dataset = dataset if dataset is not None else self._defaultDataset

	log = logging.getLogger(type(self).__name__)

	name

Protected Member Functions
	_func (self, df)

	_get_data_columnLevels (self, data, columnIndex=None)

	_get_data_columnLevelNames (self, data, columnIndex=None)

	_colsFromDict (self, colDict, columnIndex=None)

	_get_columnIndex (self, data)

	_get_data (self, data)

	_setLevels (self, df)

	_dropna (self, vals)

Protected Attributes
	_noDup = noDup

Static Protected Attributes
str	_defaultDataset = 'ref'

tuple	_dfLevels = ('column',)

bool	_defaultNoDup = False

Detailed Description

Compute the semiminor axis length in arcseconds

Definition at line 2131 of file functors.py.

Member Function Documentation

◆ call()

lsst.pipe.tasks.functors.Functor.__call__	(	self,
		data,
		dropna = False )

inherited

Definition at line 348 of file functors.py.

    def __call__(self, data, dropna=False):
        df = self._get_data(data)
        try:
            vals = self._func(df)
        except Exception as e:
            self.log.error("Exception in %s call: %s: %s", self.name, type(e).__name__, e)
            vals = self.fail(df)
        if dropna:
            vals = self._dropna(vals)

        return vals


◆ _colsFromDict()

lsst.pipe.tasks.functors.Functor._colsFromDict	(	self,
		colDict,
		columnIndex = None )

protectedinherited

Converts dictionary column specficiation to a list of columns.

Definition at line 218 of file functors.py.

    def _colsFromDict(self, colDict, columnIndex=None):
        """Converts dictionary column specficiation to a list of columns."""
        new_colDict = {}
        columnLevels = self._get_data_columnLevels(None, columnIndex=columnIndex)

        for i, lev in enumerate(columnLevels):
            if lev in colDict:
                if isinstance(colDict[lev], str):
                    new_colDict[lev] = [colDict[lev]]
                else:
                    new_colDict[lev] = colDict[lev]
            else:
                new_colDict[lev] = columnIndex.levels[i]

        levelCols = [new_colDict[lev] for lev in columnLevels]
        cols = list(product(*levelCols))
        colsAvailable = [col for col in cols if col in columnIndex]
        return colsAvailable


◆ _dropna()

lsst.pipe.tasks.functors.Functor._dropna	(		self,
			vals )

protectedinherited

Definition at line 345 of file functors.py.

    def _dropna(self, vals):
        return vals.dropna()


◆ _func()

lsst.pipe.tasks.functors.SemiminorAxisFromMoments._func	(		self,
			df )

protected

Reimplemented from lsst.pipe.tasks.functors.Functor.

Definition at line 2137 of file functors.py.

    def _func(self, df):

        sky_uu = self.sky_uu(df)
        sky_vv = self.sky_vv(df)
        sky_uv = self.sky_uv(df)

        # This copies what is done (unvectorized) in afw.geom.
        xx_p_yy = sky_uu + sky_vv
        xx_m_yy = sky_uu - sky_vv
        t = np.sqrt(xx_m_yy * xx_m_yy + 4 * sky_uv * sky_uv)
        b_radians = np.sqrt(0.5 * (xx_p_yy - t))

        return pd.Series(np.degrees(b_radians)*3600, index=df.index).astype('float32')

◆ _get_columnIndex()

lsst.pipe.tasks.functors.Functor._get_columnIndex	(		self,
			data )

protectedinherited

Return columnIndex.

Definition at line 294 of file functors.py.

    def _get_columnIndex(self, data):
        """Return columnIndex."""

        if isinstance(data, (DeferredDatasetHandle, InMemoryDatasetHandle)):
            return data.get(component="columns")
        else:
            return None


◆ _get_data()

lsst.pipe.tasks.functors.Functor._get_data	(		self,
			data )

protectedinherited

Retrieve DataFrame necessary for calculation.

The data argument can be a `~pandas.DataFrame`, a
`~lsst.daf.butler.DeferredDatasetHandle`, or
an `~lsst.pipe.base.InMemoryDatasetHandle`.

Returns a DataFrame upon which `self._func` can act.

Definition at line 302 of file functors.py.

    def _get_data(self, data):
        """Retrieve DataFrame necessary for calculation.

        The data argument can be a `~pandas.DataFrame`, a
        `~lsst.daf.butler.DeferredDatasetHandle`, or
        an `~lsst.pipe.base.InMemoryDatasetHandle`.

        Returns a DataFrame upon which `self._func` can act.
        """
        # We wrap a DataFrame in a handle here to take advantage of the
        # DataFrame delegate DataFrame column wrangling abilities.
        if isinstance(data, pd.DataFrame):
            _data = InMemoryDatasetHandle(data, storageClass="DataFrame")
        elif isinstance(data, (DeferredDatasetHandle, InMemoryDatasetHandle)):
            _data = data
        else:
            raise RuntimeError(f"Unexpected type provided for data. Got {get_full_type_name(data)}.")

        # First thing to do: check to see if the data source has a multilevel
        # column index or not.
        columnIndex = self._get_columnIndex(_data)
        is_multiLevel = isinstance(columnIndex, pd.MultiIndex)

        # Get proper columns specification for this functor.
        if is_multiLevel:
            columns = self.multilevelColumns(_data, columnIndex=columnIndex)
        else:
            columns = self.columns

        # Load in-memory DataFrame with appropriate columns the gen3 way.
        df = _data.get(parameters={"columns": columns})

        # Drop unnecessary column levels.
        if is_multiLevel:
            df = self._setLevels(df)

        return df


◆ _get_data_columnLevelNames()

lsst.pipe.tasks.functors.Functor._get_data_columnLevelNames	(	self,
		data,
		columnIndex = None )

protectedinherited

Gets the content of each of the column levels for a multilevel
table.

Definition at line 204 of file functors.py.

    def _get_data_columnLevelNames(self, data, columnIndex=None):
        """Gets the content of each of the column levels for a multilevel
        table.
        """
        if columnIndex is None:
            columnIndex = data.get(component="columns")

        columnLevels = columnIndex.names
        columnLevelNames = {
            level: list(np.unique(np.array([c for c in columnIndex])[:, i]))
            for i, level in enumerate(columnLevels)
        }
        return columnLevelNames


◆ _get_data_columnLevels()

lsst.pipe.tasks.functors.Functor._get_data_columnLevels	(	self,
		data,
		columnIndex = None )

protectedinherited

Gets the names of the column index levels.

This should only be called in the context of a multilevel table.

Parameters
----------
data : various
    The data to be read, can be a
    `~lsst.daf.butler.DeferredDatasetHandle` or
    `~lsst.pipe.base.InMemoryDatasetHandle`.
columnIndex (optional): pandas `~pandas.Index` object
    If not passed, then it is read from the
    `~lsst.daf.butler.DeferredDatasetHandle`
    for `~lsst.pipe.base.InMemoryDatasetHandle`.

Definition at line 184 of file functors.py.

    def _get_data_columnLevels(self, data, columnIndex=None):
        """Gets the names of the column index levels.

        This should only be called in the context of a multilevel table.

        Parameters
        ----------
        data : various
            The data to be read, can be a
            `~lsst.daf.butler.DeferredDatasetHandle` or
            `~lsst.pipe.base.InMemoryDatasetHandle`.
        columnIndex (optional): pandas `~pandas.Index` object
            If not passed, then it is read from the
            `~lsst.daf.butler.DeferredDatasetHandle`
            for `~lsst.pipe.base.InMemoryDatasetHandle`.
        """
        if columnIndex is None:
            columnIndex = data.get(component="columns")
        return columnIndex.names


◆ _setLevels()

lsst.pipe.tasks.functors.Functor._setLevels	(		self,
			df )

protectedinherited

Definition at line 340 of file functors.py.

    def _setLevels(self, df):
        levelsToDrop = [n for n in df.columns.names if n not in self._dfLevels]
        df.columns = df.columns.droplevel(levelsToDrop)
        return df


◆ columns()

lsst.pipe.tasks.functors.MomentsBase.columns ( self )

inherited

Columns required to perform calculation.

Reimplemented from lsst.pipe.tasks.functors.Functor.

Definition at line 2011 of file functors.py.

    def columns(self):
        return [
            self.shape_xx,
            self.shape_yy,
            self.shape_xy,
            self.colCD_1_1,
            self.colCD_1_2,
            self.colCD_2_1,
            self.colCD_2_2]


◆ difference()

lsst.pipe.tasks.functors.Functor.difference	(		self,
			data1,
			data2,
		**	kwargs )

inherited

Computes difference between functor called on two different
DataFrame/Handle objects.

Definition at line 360 of file functors.py.

    def difference(self, data1, data2, **kwargs):
        """Computes difference between functor called on two different
        DataFrame/Handle objects.
        """
        return self(data1, **kwargs) - self(data2, **kwargs)


◆ fail()

lsst.pipe.tasks.functors.Functor.fail	(		self,
			df )

inherited

Definition at line 366 of file functors.py.

    def fail(self, df):
        return pd.Series(np.full(len(df), np.nan), index=df.index)


◆ multilevelColumns()

lsst.pipe.tasks.functors.Functor.multilevelColumns	(	self,
		data,
		columnIndex = None,
		returnTuple = False )

inherited

Returns columns needed by functor from multilevel dataset.

To access tables with multilevel column structure, the
`~lsst.daf.butler.DeferredDatasetHandle` or
`~lsst.pipe.base.InMemoryDatasetHandle` needs to be passed
either a list of tuples or a dictionary.

Parameters
----------
data : various
    The data as either `~lsst.daf.butler.DeferredDatasetHandle`, or
    `~lsst.pipe.base.InMemoryDatasetHandle`.
columnIndex (optional): pandas `~pandas.Index` object
    Either passed or read in from
    `~lsst.daf.butler.DeferredDatasetHandle`.
`returnTuple` : `bool`
    If true, then return a list of tuples rather than the column
    dictionary specification.
    This is set to `True` by `CompositeFunctor` in order to be able to
    combine columns from the various component functors.

Reimplemented in lsst.pipe.tasks.functors.Color, and lsst.pipe.tasks.functors.CompositeFunctor.

Definition at line 237 of file functors.py.

    def multilevelColumns(self, data, columnIndex=None, returnTuple=False):
        """Returns columns needed by functor from multilevel dataset.

        To access tables with multilevel column structure, the
        `~lsst.daf.butler.DeferredDatasetHandle` or
        `~lsst.pipe.base.InMemoryDatasetHandle` needs to be passed
        either a list of tuples or a dictionary.

        Parameters
        ----------
        data : various
            The data as either `~lsst.daf.butler.DeferredDatasetHandle`, or
            `~lsst.pipe.base.InMemoryDatasetHandle`.
        columnIndex (optional): pandas `~pandas.Index` object
            Either passed or read in from
            `~lsst.daf.butler.DeferredDatasetHandle`.
        `returnTuple` : `bool`
            If true, then return a list of tuples rather than the column
            dictionary specification.
            This is set to `True` by `CompositeFunctor` in order to be able to
            combine columns from the various component functors.

        """
        if not isinstance(data, (DeferredDatasetHandle, InMemoryDatasetHandle)):
            raise RuntimeError(f"Unexpected data type. Got {get_full_type_name(data)}.")

        if columnIndex is None:
            columnIndex = data.get(component="columns")

        # Confirm that the dataset has the column levels the functor is
        # expecting it to have.
        columnLevels = self._get_data_columnLevels(data, columnIndex)

        columnDict = {'column': self.columns,
                      'dataset': self.dataset}
        if self.filt is None:
            columnLevelNames = self._get_data_columnLevelNames(data, columnIndex)
            if "band" in columnLevels:
                if self.dataset == "ref":
                    columnDict["band"] = columnLevelNames["band"][0]
                else:
                    raise ValueError(f"'filt' not set for functor {self.name}"
                                     f"(dataset {self.dataset}) "
                                     "and DataFrame "
                                     "contains multiple filters in column index. "
                                     "Set 'filt' or set 'dataset' to 'ref'.")
        else:
            columnDict['band'] = self.filt

        if returnTuple:
            return self._colsFromDict(columnDict, columnIndex=columnIndex)
        else:
            return columnDict


◆ name()

lsst.pipe.tasks.functors.Functor.name ( self )

inherited

Full name of functor (suitable for figure labels).

Definition at line 370 of file functors.py.

    def name(self):
        """Full name of functor (suitable for figure labels)."""
        return NotImplementedError


◆ noDup()

lsst.pipe.tasks.functors.Functor.noDup ( self )

inherited

Do not explode by band if used on object table.

Definition at line 170 of file functors.py.

    def noDup(self):
        """Do not explode by band if used on object table."""
        if self._noDup is not None:
            return self._noDup
        else:
            return self._defaultNoDup


◆ shortname()

lsst.pipe.tasks.functors.Functor.shortname ( self )

inherited

Short name of functor (suitable for column name/dict key).

Reimplemented in lsst.pipe.tasks.functors.Color, and lsst.pipe.tasks.functors.MagDiff.

Definition at line 375 of file functors.py.

    def shortname(self):
        """Short name of functor (suitable for column name/dict key)."""
        return self.name



◆ sky_uu()

lsst.pipe.tasks.functors.MomentsBase.sky_uu	(		self,
			df )

inherited

Return the component of the moments tensor aligned with the RA axis, in radians.

Definition at line 2023 of file functors.py.

    def sky_uu(self, df):
        """Return the component of the moments tensor aligned with the RA axis, in radians."""
        i_xx = df[self.shape_xx]
        i_yy = df[self.shape_yy]
        i_xy = df[self.shape_xy]
        CD_1_1 = df[self.colCD_1_1]
        CD_1_2 = df[self.colCD_1_2]
        CD_2_1 = df[self.colCD_2_1]
        return (CD_1_1*(i_xx*CD_1_1 + i_xy*CD_2_1)
                + CD_1_2*(i_xy*CD_1_1 + i_yy*CD_2_1))


◆ sky_uv()

lsst.pipe.tasks.functors.MomentsBase.sky_uv	(		self,
			df )

inherited

Return the covariance of the moments tensor in ra, dec coordinates, in radians.

Definition at line 2045 of file functors.py.

    def sky_uv(self, df):
        """Return the covariance of the moments tensor in ra, dec coordinates, in radians."""
        i_xx = df[self.shape_xx]
        i_yy = df[self.shape_yy]
        i_xy = df[self.shape_xy]
        CD_1_1 = df[self.colCD_1_1]
        CD_1_2 = df[self.colCD_1_2]
        CD_2_1 = df[self.colCD_2_1]
        CD_2_2 = df[self.colCD_2_2]
        return ((CD_1_1 * i_xx + CD_1_2 * i_xy) * CD_2_1
                + (CD_1_1 * i_xy + CD_1_2 * i_yy) * CD_2_2)



◆ sky_vv()

lsst.pipe.tasks.functors.MomentsBase.sky_vv	(		self,
			df )

inherited

Return the component of the moments tensor aligned with the dec axis, in radians.

Definition at line 2034 of file functors.py.

    def sky_vv(self, df):
        """Return the component of the moments tensor aligned with the dec axis, in radians."""
        i_xx = df[self.shape_xx]
        i_yy = df[self.shape_yy]
        i_xy = df[self.shape_xy]
        CD_1_2 = df[self.colCD_1_2]
        CD_2_1 = df[self.colCD_2_1]
        CD_2_2 = df[self.colCD_2_2]
        return (CD_2_1*(i_xx*CD_1_2 + i_xy*CD_2_2)
                + CD_2_2*(i_xy*CD_1_2 + i_yy*CD_2_2))


Member Data Documentation

◆ _defaultDataset

str lsst.pipe.tasks.functors.Functor._defaultDataset = 'ref'

staticprotectedinherited

Definition at line 159 of file functors.py.

◆ _defaultNoDup

bool lsst.pipe.tasks.functors.Functor._defaultNoDup = False

staticprotectedinherited

Definition at line 161 of file functors.py.

◆ _dfLevels

tuple lsst.pipe.tasks.functors.Functor._dfLevels = ('column',)

staticprotectedinherited

Definition at line 160 of file functors.py.

◆ _noDup

lsst.pipe.tasks.functors.Functor._noDup = noDup

protectedinherited

Definition at line 166 of file functors.py.

◆ colCD_1_1

lsst.pipe.tasks.functors.MomentsBase.colCD_1_1 = colCD_1_1

inherited

Definition at line 2004 of file functors.py.

◆ colCD_1_2

lsst.pipe.tasks.functors.MomentsBase.colCD_1_2 = colCD_1_2

inherited

Definition at line 2005 of file functors.py.

◆ colCD_2_1

lsst.pipe.tasks.functors.MomentsBase.colCD_2_1 = colCD_2_1

inherited

Definition at line 2006 of file functors.py.

◆ colCD_2_2

lsst.pipe.tasks.functors.MomentsBase.colCD_2_2 = colCD_2_2

inherited

Definition at line 2007 of file functors.py.

◆ dataset

str lsst.pipe.tasks.functors.Functor.dataset = dataset if dataset is not None else self._defaultDataset

inherited

Definition at line 165 of file functors.py.

◆ filt

lsst.pipe.tasks.functors.Functor.filt = filt

inherited

Reimplemented in lsst.pipe.tasks.functors.Color, lsst.pipe.tasks.functors.Color, lsst.pipe.tasks.functors.CompositeFunctor, and lsst.pipe.tasks.functors.CompositeFunctor.

Definition at line 164 of file functors.py.

◆ log

lsst.pipe.tasks.functors.Functor.log = logging.getLogger(type(self).__name__)

inherited

Definition at line 167 of file functors.py.

◆ name

lsst.pipe.tasks.functors.Functor.name

inherited

Definition at line 353 of file functors.py.

◆ shape_xx

lsst.pipe.tasks.functors.MomentsBase.shape_xx = shape_xx

inherited

Definition at line 2001 of file functors.py.

◆ shape_xy

lsst.pipe.tasks.functors.MomentsBase.shape_xy = shape_xy

inherited

Definition at line 2003 of file functors.py.

◆ shape_yy

lsst.pipe.tasks.functors.MomentsBase.shape_yy = shape_yy

inherited

Definition at line 2002 of file functors.py.

The documentation for this class was generated from the following file:

/j/snowflake/release/lsstsw/stack/lsst-scipipe-12.1.0/Linux/pipe_tasks/g99af87f6a8+b0f4ad7b8d/python/lsst/pipe/tasks/functors.py

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Member Function Documentation

◆ __call__()

◆ _colsFromDict()

◆ _dropna()

◆ _func()

◆ _get_columnIndex()

◆ _get_data()

◆ _get_data_columnLevelNames()

◆ _get_data_columnLevels()

◆ _setLevels()

◆ columns()

◆ difference()

◆ fail()

◆ multilevelColumns()

◆ name()

◆ noDup()

◆ shortname()

◆ sky_uu()

◆ sky_uv()

◆ sky_vv()

Member Data Documentation

◆ _defaultDataset

◆ _defaultNoDup

◆ _dfLevels

◆ _noDup

◆ colCD_1_1

◆ colCD_1_2

◆ colCD_2_1

◆ colCD_2_2

◆ dataset

◆ filt

◆ log

◆ name

◆ shape_xx

◆ shape_xy

◆ shape_yy

◆ call()
