lsst.afw.geom::Point< T, N > Class Template Reference

A coordinate class intended to represent absolute positions. More...

#include <PSF.h>

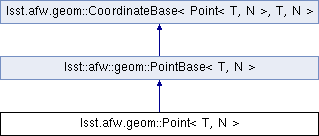

Inheritance diagram for lsst.afw.geom::Point< T, N >:

Public Types
typedef Super::EigenVector	EigenVector
Public Types inherited from lsst.afw.geom::CoordinateBase< Point< T, N >, T, N >
typedef T	Element
typedef Eigen::Matrix< T, N, 1, Eigen::DontAlign >	EigenVector

Public Member Functions
	Point (T val=static_cast< T >(0))
	Construct a Point with all elements set to the same scalar value. More...
template<typename U >
	Point (Point< U, N > const &other)
	Explicit converting constructor. More...
	Point (EigenVector const &vector)
	Construct a Point from an Eigen vector. More...
	Point (Extent< T, N > const &other)
	Explicit constructor from Extent. More...
void	swap (Point &other)
Public Member Functions inherited from lsst.afw.geom::PointBase< T, N >
bool	operator== (Point< T, N > const &other) const
	Standard equality comparison. More...
bool	operator!= (Point< T, N > const &other) const
	Standard inequality comparison. More...
Extent< T, N >	asExtent () const
	Cast this object to an Extent of the same numeric type and dimensionality. More...
void	shift (Extent< T, N > const &offset)
	Shift the point by the given offset. More...
void	scale (double factor)
double	distanceSquared (PointBase< T, N > const &other) const
std::string	toString () const
CoordinateExpr< N >	eq (Point< T, N > const &other) const
CoordinateExpr< N >	ne (Point< T, N > const &other) const
CoordinateExpr< N >	lt (Point< T, N > const &other) const
CoordinateExpr< N >	le (Point< T, N > const &other) const
CoordinateExpr< N >	gt (Point< T, N > const &other) const
CoordinateExpr< N >	ge (Point< T, N > const &other) const
CoordinateExpr< N >	eq (T scalar) const
CoordinateExpr< N >	ne (T scalar) const
CoordinateExpr< N >	lt (T scalar) const
CoordinateExpr< N >	le (T scalar) const
CoordinateExpr< N >	gt (T scalar) const
CoordinateExpr< N >	ge (T scalar) const
Extent< T, N >	operator- (Point< T, N > const &other) const
Point< T, N >	operator+ (Extent< T, N > const &other) const
Point< T, N >	operator- (Extent< T, N > const &other) const
Point< T, N > &	operator+= (Extent< T, N > const &other)
Point< T, N > &	operator-= (Extent< T, N > const &other)
Public Member Functions inherited from lsst.afw.geom::CoordinateBase< Point< T, N >, T, N >
T &	operator[] (int n)
T const &	operator[] (int n) const
T &	coeffRef (int n)
T const &	coeffRef (int n) const
EigenVector const &	asEigen () const
	Return a fixed-size Eigen representation of the coordinate object. More...

Private Types
typedef PointBase< T, N >	Super

Additional Inherited Members
Static Public Attributes inherited from lsst.afw.geom::CoordinateBase< Point< T, N >, T, N >
static int const	dimensions
Protected Member Functions inherited from lsst.afw.geom::PointBase< T, N >
	PointBase (T val=static_cast< T >(0))
template<typename Vector >
	PointBase (Eigen::MatrixBase< Vector > const &vector)
Protected Member Functions inherited from lsst.afw.geom::CoordinateBase< Point< T, N >, T, N >
	CoordinateBase (T val=static_cast< T >(0))
	Initialize all elements to a scalar. More...
	CoordinateBase (Eigen::MatrixBase< Vector > const &vector)
	Initialize all elements from an N-d Eigen vector. More...
void	_swap (CoordinateBase &other)
Protected Attributes inherited from lsst.afw.geom::CoordinateBase< Point< T, N >, T, N >
EigenVector	_vector

Detailed Description

template<typename T, int N>
class lsst.afw.geom::Point< T, N >

A coordinate class intended to represent absolute positions.

See Operators on Point and Extent for mathematical operators on Point.

Examples:

image2.cc, maskedImage2.cc, and spatialCellExample.cc.

Definition at line 39 of file PSF.h.

Member Typedef Documentation

template<typename T, int N>

typedef Super::EigenVector lsst.afw.geom::Point< T, N >::EigenVector

Definition at line 153 of file Point.h.

template<typename T, int N>

typedef PointBase<T,N> lsst.afw.geom::Point< T, N >::Super

private

Definition at line 151 of file Point.h.

Constructor & Destructor Documentation

template<typename T, int N>

lsst.afw.geom::Point< T, N >::Point ( T  val = static_cast<T>(0) )

inlineexplicit

Construct a Point with all elements set to the same scalar value.

Definition at line 156 of file Point.h.

: Super(val) {}

template<typename T, int N>

template<typename U >

lsst.afw.geom::Point< T, N >::Point ( Point< U, N > const &  other )

explicit

Explicit converting constructor.

Converting from floating point to integer rounds to the nearest integer instead of truncating. This ensures that a floating-point pixel coordinate converts to the coordinate of the pixel it lies on (assuming the floating point origin is the center of the first pixel).

template<typename T, int N>

lsst.afw.geom::Point< T, N >::Point ( EigenVector const &  vector )

inlineexplicit

Construct a Point from an Eigen vector.

Definition at line 169 of file Point.h.

: Super(vector) {}

template<typename T, int N>

lsst.afw.geom::Point< T, N >::Point ( Extent< T, N > const &  other )

inlineexplicit

Explicit constructor from Extent.

Definition at line 172 of file Point.h.

: Super(other.asEigen()) {}

Member Function Documentation

template<typename T, int N>

void lsst.afw.geom::Point< T, N >::swap ( Point< T, N > &  other )

inline

Definition at line 174 of file Point.h.

{ this->_swap(other); }

---

The documentation for this class was generated from the following files:

• /home/lsstsw/stack/Linux64/meas_algorithms/10.0-15-ga3f480f+1/include/lsst/meas/algorithms/PSF.h
• /home/lsstsw/stack/Linux64/afw/10.0-40-g4349866+2/include/lsst/afw/geom/Point.h
