lsst.afw.table::EllipseKey Class Reference

A FunctorKey used to get or set a geom::ellipses::Ellipse from an (xx,yy,xy,x,y) tuple of Keys. More...

#include <aggregates.h>

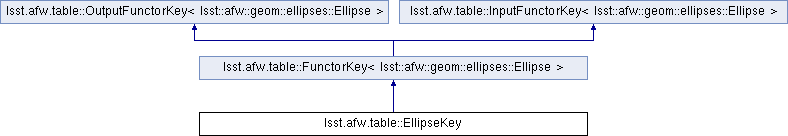

Inheritance diagram for lsst.afw.table::EllipseKey:

Public Member Functions
	EllipseKey ()
	Default constructor; instance will not be usable unless subsequently assigned to. More...
	EllipseKey (QuadrupoleKey const &qKey, PointKey< double > const &pKey)
	Construct from individual Keys. More...
	EllipseKey (SubSchema const &s)
	Construct from a subschema, assuming (xx, yy, xy, x, y) subfields. More...
virtual geom::ellipses::Ellipse	get (BaseRecord const &record) const
	Get an Ellipse from the given record. More...
virtual void	set (BaseRecord &record, geom::ellipses::Ellipse const &value) const
	Set an Ellipse in the given record. More...
bool	isValid () const
	Return True if all the constituent Keys are valid. More...
bool	operator== (EllipseKey const &other) const
	Compare the FunctorKey for equality with another, using the underlying Ixx, Iyy, Ixy Keys. More...
bool	operator!= (EllipseKey const &other) const
	Compare the FunctorKey for equality with another, using the underlying Ixx, Iyy, Ixy Keys. More...
QuadrupoleKey	getCore () const
	Return constituent FunctorKeys. More...
PointKey< double >	getCenter () const
	Return constituent FunctorKeys. More...
Public Member Functions inherited from lsst.afw.table::OutputFunctorKey< lsst::afw::geom::ellipses::Ellipse >
virtual	~OutputFunctorKey ()
Public Member Functions inherited from lsst.afw.table::InputFunctorKey< lsst::afw::geom::ellipses::Ellipse >
virtual	~InputFunctorKey ()

Static Public Member Functions
static EllipseKey	addFields (Schema &schema, std::string const &name, std::string const &doc, std::string const &unit)

Private Attributes
QuadrupoleKey	_qKey
PointKey< double >	_pKey

Detailed Description

A FunctorKey used to get or set a geom::ellipses::Ellipse from an (xx,yy,xy,x,y) tuple of Keys.

Definition at line 281 of file aggregates.h.

Constructor & Destructor Documentation

lsst.afw.table::EllipseKey::EllipseKey ( )

inline

Default constructor; instance will not be usable unless subsequently assigned to.

Definition at line 302 of file aggregates.h.

: _qKey(), _pKey() {}

lsst.afw.table::EllipseKey::EllipseKey ( QuadrupoleKey const &  qKey, PointKey< double > const &  pKey  )

inline

Construct from individual Keys.

Definition at line 305 of file aggregates.h.

                                                                          :
        _qKey(qKey), _pKey(pKey)
    {}

lsst.afw.table::EllipseKey::EllipseKey ( SubSchema const &  s )

inline

Construct from a subschema, assuming (xx, yy, xy, x, y) subfields.

If a schema has "a_xx", "a_yy", "a_xy", "a_x", and "a_y" fields, this constructor allows you to construct an EllipseKey via:

*  EllipseKey k(schema["a"]);
*

Definition at line 318 of file aggregates.h.

: _qKey(s), _pKey(s) {}

Member Function Documentation

static EllipseKey lsst.afw.table::EllipseKey::addFields ( Schema &  schema, std::string const &  name, std::string const &  doc, std::string const &  unit  )

static

Add a set of _xx, _yy, _xy, _x, _y fields to a Schema, and return an EllipseKey that points to them.

Parameters

[in,out]	schema	Schema to add fields to.
[in]	name	Name prefix for all fields; "_xx", "_yy", "_xy", "_x" ,"_y", will be appended to this to form the full field names.
[in]	doc	String used as the documentation for the fields.
[in]	unit	String used as the unit for x and y fields; "<unit>^2" will be used for xx, yy, and xy fields.

virtual geom::ellipses::Ellipse lsst.afw.table::EllipseKey::get ( BaseRecord const &  record ) const

virtual

Get an Ellipse from the given record.

Implements lsst.afw.table::OutputFunctorKey< lsst::afw::geom::ellipses::Ellipse >.

PointKey<double> lsst.afw.table::EllipseKey::getCenter ( ) const

inline

Return constituent FunctorKeys.

Definition at line 340 of file aggregates.h.

{ return _pKey; }

QuadrupoleKey lsst.afw.table::EllipseKey::getCore ( ) const

inline

Return constituent FunctorKeys.

Definition at line 339 of file aggregates.h.

{ return _qKey; }

bool lsst.afw.table::EllipseKey::isValid ( ) const

inline

Return True if all the constituent Keys are valid.

Definition at line 335 of file aggregates.h.

{ return _qKey.isValid() && _pKey.isValid(); }

bool lsst.afw.table::EllipseKey::operator!= ( EllipseKey const &  other ) const

inline

Compare the FunctorKey for equality with another, using the underlying Ixx, Iyy, Ixy Keys.

Definition at line 331 of file aggregates.h.

{ return !(*this == other); }

bool lsst.afw.table::EllipseKey::operator== ( EllipseKey const &  other ) const

inline

Compare the FunctorKey for equality with another, using the underlying Ixx, Iyy, Ixy Keys.

Definition at line 328 of file aggregates.h.

                                                    {
        return _qKey == other._qKey && _pKey == other._pKey;
    }

virtual void lsst.afw.table::EllipseKey::set ( BaseRecord &  record, geom::ellipses::Ellipse const &  value  ) const

virtual

Set an Ellipse in the given record.

Implements lsst.afw.table::InputFunctorKey< lsst::afw::geom::ellipses::Ellipse >.

Member Data Documentation

PointKey<double> lsst.afw.table::EllipseKey::_pKey

private

Definition at line 345 of file aggregates.h.

QuadrupoleKey lsst.afw.table::EllipseKey::_qKey

private

Definition at line 344 of file aggregates.h.

---

The documentation for this class was generated from the following file:

• /home/lsstsw/stack/Linux64/afw/10.0-40-g4349866+2/include/lsst/afw/table/aggregates.h
