A coordinate class intended to represent absolute positions. More...

#include <CoordinateBase.h>

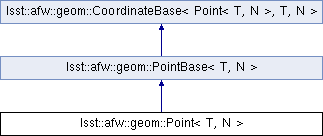

Inheritance diagram for lsst::afw::geom::Point< T, N >:

Public Types
typedef Super::EigenVector	EigenVector

Public Types inherited from lsst::afw::geom::CoordinateBase< Point< T, N >, T, N >
typedef T	Element

typedef Eigen::Matrix< T, N, 1, Eigen::DontAlign >	EigenVector

Public Member Functions
	Point (T val=static_cast< T >(0))
	Construct a Point with all elements set to the same scalar value. More...

template<typename U >
	Point (Point< U, N > const &other)
	Explicit converting constructor. More...

	Point (EigenVector const &vector)
	Construct a Point from an Eigen vector. More...

	Point (Extent< T, N > const &other)
	Explicit constructor from Extent. More...

void	swap (Point &other)

Public Member Functions inherited from lsst::afw::geom::PointBase< T, N >
bool	operator== (Point< T, N > const &other) const
	Standard equality comparison. More...

bool	operator!= (Point< T, N > const &other) const
	Standard inequality comparison. More...

void	shift (Extent< T, N > const &offset)
	Shift the point by the given offset. More...

void	scale (double factor)

double	distanceSquared (PointBase< T, N > const &other) const

std::string	toString () const

CoordinateExpr< N >	eq (Point< T, N > const &other) const

CoordinateExpr< N >	ne (Point< T, N > const &other) const

CoordinateExpr< N >	lt (Point< T, N > const &other) const

CoordinateExpr< N >	le (Point< T, N > const &other) const

CoordinateExpr< N >	gt (Point< T, N > const &other) const

CoordinateExpr< N >	ge (Point< T, N > const &other) const

CoordinateExpr< N >	eq (T scalar) const

CoordinateExpr< N >	ne (T scalar) const

CoordinateExpr< N >	lt (T scalar) const

CoordinateExpr< N >	le (T scalar) const

CoordinateExpr< N >	gt (T scalar) const

CoordinateExpr< N >	ge (T scalar) const

Extent< T, N >	operator- (Point< T, N > const &other) const

Point< T, N >	operator+ (Extent< T, N > const &other) const

Point< T, N >	operator- (Extent< T, N > const &other) const

Point< T, N > &	operator+= (Extent< T, N > const &other)

Point< T, N > &	operator-= (Extent< T, N > const &other)

Public Member Functions inherited from lsst::afw::geom::CoordinateBase< Point< T, N >, T, N >
T &	operator[] (int n)

T const &	operator[] (int n) const

T &	coeffRef (int n)

T const &	coeffRef (int n) const

EigenVector const &	asEigen () const
	Return a fixed-size Eigen representation of the coordinate object. More...

Private Types
typedef PointBase< T, N >	Super

Additional Inherited Members
Static Public Attributes inherited from lsst::afw::geom::CoordinateBase< Point< T, N >, T, N >
static int const	dimensions

Protected Member Functions inherited from lsst::afw::geom::PointBase< T, N >
	PointBase (T val=static_cast< T >(0))

template<typename Vector >
	PointBase (Eigen::MatrixBase< Vector > const &vector)

Protected Member Functions inherited from lsst::afw::geom::CoordinateBase< Point< T, N >, T, N >
	CoordinateBase (T val=static_cast< T >(0))
	Initialize all elements to a scalar. More...

	CoordinateBase (Eigen::MatrixBase< Vector > const &vector)
	Initialize all elements from an N-d Eigen vector. More...

void	_swap (CoordinateBase &other)

Protected Attributes inherited from lsst::afw::geom::CoordinateBase< Point< T, N >, T, N >
EigenVector	_vector

Detailed Description

template<typename T, int N = 2>
class lsst::afw::geom::Point< T, N >

A coordinate class intended to represent absolute positions.

Examples:: image2.cc, maskedImage2.cc, and spatialCellExample.cc.

Definition at line 40 of file CoordinateBase.h.

Member Typedef Documentation

template<typename T, int N = 2>

typedef Super::EigenVector lsst::afw::geom::Point< T, N >::EigenVector

Definition at line 148 of file Point.h.

template<typename T, int N = 2>

typedef PointBase<T,N> lsst::afw::geom::Point< T, N >::Super

private

Definition at line 146 of file Point.h.

Constructor & Destructor Documentation

template<typename T, int N = 2>

lsst::afw::geom::Point< T, N >::Point ( T val = static_cast<T>(0) )

inlineexplicit

Construct a Point with all elements set to the same scalar value.

Definition at line 151 of file Point.h.

151 : Super(val) {}

lsst::afw::geom::Point::Super

PointBase< T, N > Super

Definition: Point.h:146

val

ImageT val

Definition: CR.cc:154

template<typename T, int N = 2>

template<typename U >

lsst::afw::geom::Point< T, N >::Point ( Point< U, N > const & other )

explicit

Explicit converting constructor.

Converting from floating point to integer rounds to the nearest integer instead of truncating. This ensures that a floating-point pixel coordinate converts to the coordinate of the pixel it lies on (assuming the floating point origin is the center of the first pixel).

template<typename T, int N = 2>

lsst::afw::geom::Point< T, N >::Point ( EigenVector const & vector )

inlineexplicit

Construct a Point from an Eigen vector.

Definition at line 164 of file Point.h.

164 : Super(vector) {}

lsst::afw::geom::Point::Super

PointBase< T, N > Super

Definition: Point.h:146

template<typename T, int N = 2>

lsst::afw::geom::Point< T, N >::Point ( Extent< T, N > const & other )

inlineexplicit

Explicit constructor from Extent.

Definition at line 167 of file Point.h.

167 : Super(other.asEigen()) {}

lsst::afw::geom::Point::Super

PointBase< T, N > Super

Definition: Point.h:146

Member Function Documentation

template<typename T, int N = 2>

void lsst::afw::geom::Point< T, N >::swap ( Point< T, N > & other )

inline

Definition at line 169 of file Point.h.

169 { this->_swap(other); }

lsst::afw::geom::CoordinateBase< Point< T, N >, T, N >::_swap

void _swap(CoordinateBase &other)

Definition: CoordinateBase.h:88

The documentation for this class was generated from the following files:

/lsst/home/lsstsw/stack/Linux64/afw/master-gae20e2b580+3/include/lsst/afw/geom/CoordinateBase.h
/lsst/home/lsstsw/stack/Linux64/afw/master-gae20e2b580+3/include/lsst/afw/geom/Point.h
