lsst::afw::image::Image< PixelT > Class Template Reference

A class to represent a 2-dimensional array of pixels. More...

#include <Image.h>

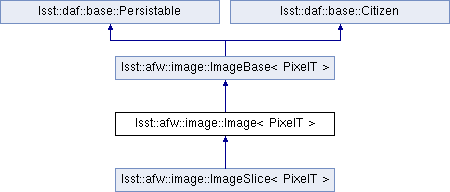

Inheritance diagram for lsst::afw::image::Image< PixelT >:

Classes
struct	ImageTypeFactory
	A templated class to return this classes' type (present in Image/Mask/MaskedImage) More...

Public Types
typedef boost::shared_ptr < Image< PixelT > >	Ptr
typedef boost::shared_ptr < const Image< PixelT > >	ConstPtr
typedef detail::Image_tag	image_category
Public Types inherited from lsst::afw::image::ImageBase< PixelT >
typedef boost::shared_ptr < ImageBase< PixelT > >	Ptr
	A shared_ptr to an ImageBase. More...
typedef boost::shared_ptr < const ImageBase< PixelT > >	ConstPtr
	A shared_ptr to a const ImageBase. More...
typedef detail::basic_tag	image_category
	trait class to identify type of image More...
typedef PixelT	SinglePixel
	A single Pixel of the same type as those in the ImageBase. More...
typedef PixelT	Pixel
	A pixel in this ImageBase. More...
typedef Reference< PixelT >::type	PixelReference
	A Reference to a PixelT. More...
typedef ConstReference< PixelT > ::type	PixelConstReference
	A ConstReference to a PixelT. More...
typedef _view_t::xy_locator	xy_locator
	An xy_locator. More...
typedef _view_t::xy_locator::const_t	const_xy_locator
	A const_xy_locator. More...
typedef _view_t::iterator	iterator
	An STL compliant iterator. More...
typedef _const_view_t::iterator	const_iterator
	An STL compliant const iterator. More...
typedef _view_t::reverse_iterator	reverse_iterator
	An STL compliant reverse iterator. More...
typedef _const_view_t::reverse_iterator	const_reverse_iterator
	An STL compliant const reverse iterator. More...
typedef _view_t::x_iterator	x_iterator
	An iterator for traversing the pixels in a row. More...
typedef x_iterator	fast_iterator
typedef _view_t::x_iterator	xy_x_iterator
	An iterator for traversing the pixels in a row, created from an xy_locator. More...
typedef _const_view_t::x_iterator	const_x_iterator
	A const iterator for traversing the pixels in a row. More...
typedef _view_t::y_iterator	y_iterator
	An iterator for traversing the pixels in a column. More...
typedef _view_t::y_iterator	xy_y_iterator
	An iterator for traversing the pixels in a row, created from an xy_locator. More...
typedef _const_view_t::y_iterator	const_y_iterator
	A const iterator for traversing the pixels in a column. More...
typedef ndarray::Array< PixelT, 2, 1 >	Array
	A mutable ndarray representation of the image. More...
typedef ndarray::Array< PixelT const, 2, 1 >	ConstArray
	An immutable ndarray representation of the image. More...
Public Types inherited from lsst::daf::base::Persistable
typedef boost::shared_ptr < Persistable >	Ptr
Public Types inherited from lsst::daf::base::Citizen
enum	{ magicSentinel = 0xdeadbeef }
typedef unsigned long	memId
	Type of the block's ID. More...
typedef memId(*	memNewCallback )(const memId cid)
	A function used to register a callback. More...
typedef memId(*	memCallback )(const Citizen *ptr)

Public Member Functions
	Image (unsigned int width, unsigned int height, PixelT initialValue=0)
	Image (geom::Extent2I const &dimensions=geom::Extent2I(), PixelT initialValue=0)
	Image (geom::Box2I const &bbox, PixelT initialValue=0)
	Image (Image const &rhs, geom::Box2I const &bbox, ImageOrigin const origin=PARENT, const bool deep=false)
	Image (const Image &rhs, const bool deep=false)
	Image (std::string const &fileName, int hdu=0, boost::shared_ptr< lsst::daf::base::PropertySet > metadata=boost::shared_ptr< lsst::daf::base::PropertySet >(), geom::Box2I const &bbox=geom::Box2I(), ImageOrigin origin=PARENT)
	Construct an Image by reading a regular FITS file. More...
	Image (fits::MemFileManager &manager, int hdu=0, boost::shared_ptr< lsst::daf::base::PropertySet > metadata=boost::shared_ptr< lsst::daf::base::PropertySet >(), geom::Box2I const &bbox=geom::Box2I(), ImageOrigin origin=PARENT)
	Construct an Image by reading a FITS image in memory. More...
	Image (fits::Fits &fitsfile, boost::shared_ptr< lsst::daf::base::PropertySet > metadata=boost::shared_ptr< lsst::daf::base::PropertySet >(), geom::Box2I const &bbox=geom::Box2I(), ImageOrigin origin=PARENT)
	Construct an Image from an already-open FITS object. More...
template<typename OtherPixelT >
	Image (Image< OtherPixelT > const &rhs, const bool deep)
	Image (ndarray::Array< PixelT, 2, 1 > const &array, bool deep=false, geom::Point2I const &xy0=geom::Point2I())
virtual	~Image ()
Image &	operator= (const PixelT rhs)
	Set the image's pixels to rhs. More...
Image &	operator= (const Image &rhs)
void	writeFits (std::string const &fileName, boost::shared_ptr< lsst::daf::base::PropertySet const > metadata=boost::shared_ptr< lsst::daf::base::PropertySet const >(), std::string const &mode="w") const
	Write an image to a regular FITS file. More...
void	writeFits (fits::MemFileManager &manager, boost::shared_ptr< lsst::daf::base::PropertySet const > metadata=boost::shared_ptr< lsst::daf::base::PropertySet const >(), std::string const &mode="w") const
	Write an image to a FITS RAM file. More...
void	writeFits (fits::Fits &fitsfile, boost::shared_ptr< lsst::daf::base::PropertySet const > metadata=boost::shared_ptr< lsst::daf::base::PropertySet const >()) const
	Write an image to an open FITS file object. More...
void	swap (Image &rhs)
void	operator+= (PixelT const rhs)
	Add scalar rhs to lhs. More...
virtual void	operator+= (Image< PixelT >const &rhs)
	Add Image rhs to lhs. More...
void	operator+= (lsst::afw::math::Function2< double > const &function)
	Add a Function2(x, y) to an Image. More...
void	scaledPlus (double const c, Image< PixelT >const &rhs)
	Add Image c*rhs to lhs. More...
void	operator-= (PixelT const rhs)
	Subtract scalar rhs from lhs. More...
void	operator-= (Image< PixelT > const &rhs)
	Subtract Image rhs from lhs. More...
void	operator-= (lsst::afw::math::Function2< double > const &function)
	Subtract a Function2(x, y) from an Image. More...
void	scaledMinus (double const c, Image< PixelT >const &rhs)
	Subtract Image c*rhs from lhs. More...
void	operator*= (PixelT const rhs)
	Multiply lhs by scalar rhs. More...
void	operator*= (Image< PixelT > const &rhs)
	Multiply lhs by Image rhs (i.e. pixel-by-pixel multiplication) More...
void	scaledMultiplies (double const c, Image< PixelT >const &rhs)
	Multiply lhs by Image c*rhs (i.e. pixel-by-pixel multiplication) More...
void	operator/= (PixelT const rhs)
void	operator/= (Image< PixelT > const &rhs)
	Divide lhs by Image rhs (i.e. pixel-by-pixel division) More...
void	scaledDivides (double const c, Image< PixelT >const &rhs)
	Divide lhs by Image c*rhs (i.e. pixel-by-pixel division) More...
void	sqrt ()
template<>
void	operator/= (double const rhs)
template<>
void	operator/= (float const rhs)
Public Member Functions inherited from lsst::afw::image::ImageBase< PixelT >
	ImageBase (const geom::Extent2I &dimensions=geom::Extent2I())
	ImageBase (const geom::Box2I &bbox)
	ImageBase (const ImageBase &src, const bool deep=false)
	ImageBase (const ImageBase &src, const geom::Box2I &bbox, const ImageOrigin origin=PARENT, const bool deep=false)
template<typename OtherPixelT >
	ImageBase (const ImageBase< OtherPixelT > &rhs, const bool deep)
	ImageBase (Array const &array, bool deep=false, geom::Point2I const &xy0=geom::Point2I())
virtual	~ImageBase ()
ImageBase &	operator= (const ImageBase &rhs)
ImageBase &	operator= (const PixelT rhs)
	Set the image's pixels to rhs. More...
void	operator<<= (const ImageBase &rhs)
	Set the lhs's pixel values to equal the rhs's. More...
PixelReference	operator() (int x, int y)
	Return a reference to the pixel (x, y) More...
PixelReference	operator() (int x, int y, CheckIndices const &)
	Return a reference to the pixel (x, y) with bounds checking. More...
PixelConstReference	operator() (int x, int y) const
	Return a const reference to the pixel (x, y) More...
PixelConstReference	operator() (int x, int y, CheckIndices const &) const
	Return a const reference to the pixel (x, y) with bounds checking. More...
PixelConstReference	get0 (int x, int y) const
PixelConstReference	get0 (int x, int y, CheckIndices const &check) const
void	set0 (int x, int y, const PixelT v)
void	set0 (int x, int y, const PixelT v, CheckIndices const &check)
int	getWidth () const
	Return the number of columns in the image. More...
int	getHeight () const
	Return the number of rows in the image. More...
int	getX0 () const
int	getY0 () const
geom::Point2I	getXY0 () const
std::pair< int, double >	positionToIndex (double const pos, lsst::afw::image::xOrY const xy) const
	Convert image position to index (nearest integer and fractional parts) More...
double	indexToPosition (double ind, lsst::afw::image::xOrY const xy) const
	Convert image index to image position. More...
geom::Extent2I	getDimensions () const
	Return the image's size; useful for passing to constructors. More...
void	swap (ImageBase &rhs)
Array	getArray ()
ConstArray	getArray () const
iterator	begin () const
iterator	end () const
	Return an STL compliant iterator to the end of the image. More...
reverse_iterator	rbegin () const
	Return an STL compliant reverse iterator to the start of the image. More...
reverse_iterator	rend () const
	Return an STL compliant reverse iterator to the end of the image. More...
iterator	at (int x, int y) const
	Return an STL compliant iterator at the point (x, y) More...
fast_iterator	begin (bool) const
fast_iterator	end (bool) const
x_iterator	row_begin (int y) const
x_iterator	row_end (int y) const
	Return an x_iterator to the end of the y'th row. More...
x_iterator	x_at (int x, int y) const
	Return an x_iterator to the point (x, y) in the image. More...
y_iterator	col_begin (int x) const
y_iterator	col_end (int x) const
	Return an y_iterator to the end of the y'th row. More...
y_iterator	y_at (int x, int y) const
	Return an y_iterator to the point (x, y) in the image. More...
xy_locator	xy_at (int x, int y) const
void	setXY0 (geom::Point2I const origin)
void	setXY0 (int const x0, int const y0)
geom::Box2I	getBBox (ImageOrigin origin=PARENT) const
Public Member Functions inherited from lsst::daf::base::Persistable
	Persistable (void)
virtual	~Persistable (void)
template<class Archive >
void	serialize (Archive &, unsigned int const)
Public Member Functions inherited from lsst::daf::base::Citizen
	Citizen (const std::type_info &)
	Citizen (Citizen const &)
	~Citizen ()
Citizen &	operator= (Citizen const &)
std::string	repr () const
	Return a string representation of a Citizen. More...
void	markPersistent (void)
	Mark a Citizen as persistent and not destroyed until process end. More...
memId	getId () const
	Return the Citizen's ID. More...

Static Public Member Functions
static Image	readFits (std::string const &filename, int hdu=0)
	Read an Image from a regular FITS file. More...
static Image	readFits (fits::MemFileManager &manager, int hdu=0)
	Read an Image from a FITS RAM file. More...
Static Public Member Functions inherited from lsst::afw::image::ImageBase< PixelT >
template<typename SinglePixelT >
static SinglePixel	PixelCast (SinglePixelT rhs)
	Convert a type to our SinglePixel type. More...
Static Public Member Functions inherited from lsst::daf::base::Citizen
static bool	hasBeenCorrupted ()
	Check all allocated blocks for corruption. More...
static memId	getNextMemId ()
	Return the memId of the next object to be allocated. More...
static int	init ()
	Called once when the memory system is being initialised. More...
static int	census (int, memId startingMemId=0)
	How many active Citizens are there? More...
static void	census (std::ostream &stream, memId startingMemId=0)
	Print a list of all active Citizens to stream, sorted by ID. More...
static const std::vector < const Citizen * > *	census ()
	Return a (newly allocated) std::vector of active Citizens sorted by ID. More...
static memId	setNewCallbackId (memId id)
	Call the NewCallback when block is allocated. More...
static memId	setDeleteCallbackId (memId id)
	Call the current DeleteCallback when block is deleted. More...
static memNewCallback	setNewCallback (memNewCallback func)
	Set the NewCallback function. More...
static memCallback	setDeleteCallback (memCallback func)
	Set the DeleteCallback function. More...
static memCallback	setCorruptionCallback (memCallback func)
	Set the CorruptionCallback function. More...

Friends
template<typename , typename , typename >
class	MaskedImage
template<typename OtherPixelT >
class	Image

Related Functions
(Note that these are not member functions.)
template<typename ImageT >
ImageT::SinglePixel	badPixel (typename ImageT::Pixel bad=0)

Additional Inherited Members
Protected Member Functions inherited from lsst::afw::image::ImageBase< PixelT >
_view_t	_getRawView () const
bool	isContiguous () const
Static Protected Member Functions inherited from lsst::afw::image::ImageBase< PixelT >
static _view_t	_allocateView (geom::Extent2I const &dimensions, Manager::Ptr &manager)
static _view_t	_makeSubView (geom::Extent2I const &dimensions, geom::Extent2I const &offset, const _view_t &view)

Detailed Description

template<typename PixelT>
class lsst::afw::image::Image< PixelT >

A class to represent a 2-dimensional array of pixels.

Examples:

forEachPixel.cc, image1.cc, image2.cc, imageStatistics.cc, spatialCellExample.cc, and statistics.cc.

Definition at line 415 of file Image.h.

Member Typedef Documentation

template<typename PixelT>

typedef boost::shared_ptr<const Image<PixelT> > lsst::afw::image::Image< PixelT >::ConstPtr

Definition at line 419 of file Image.h.

template<typename PixelT>

typedef detail::Image_tag lsst::afw::image::Image< PixelT >::image_category

Definition at line 421 of file Image.h.

template<typename PixelT>

typedef boost::shared_ptr<Image<PixelT> > lsst::afw::image::Image< PixelT >::Ptr

Definition at line 418 of file Image.h.

Constructor & Destructor Documentation

template<typename PixelT>

lsst::afw::image::Image< PixelT >::Image ( unsigned int  width, unsigned int  height, PixelT  initialValue = 0  )

explicit

Create an initialised Image of the specified size

Note

Many lsst::afw::image and lsst::afw::math objects define a dimensions member which may be conveniently used to make objects of an appropriate size

Parameters

width	number of columns
height	number of rows
initialValue	Initial value

Definition at line 409 of file Image.cc.

                             :
    image::ImageBase<PixelT>(geom::ExtentI(width, height))
{
    *this = initialValue;
}

template<typename PixelT>

lsst::afw::image::Image< PixelT >::Image ( geom::Extent2I const &  dimensions = geom::Extent2I(), PixelT  initialValue = 0  )

explicit

Create an initialised Image of the specified size

Note

Many lsst::afw::image and lsst::afw::math objects define a dimensions member which may be conveniently used to make objects of an appropriate size

Parameters

dimensions	Number of columns, rows
initialValue	Initial value

Definition at line 425 of file Image.cc.

                             :
    image::ImageBase<PixelT>(dimensions)
{
    *this = initialValue;
}

template<typename PixelT>

lsst::afw::image::Image< PixelT >::Image ( geom::Box2I const &  bbox, PixelT  initialValue = 0  )

explicit

Create an initialized Image of the specified size

Parameters

bbox	dimensions and origin of desired Image
initialValue	Initial value

Definition at line 437 of file Image.cc.

                             :
    image::ImageBase<PixelT>(bbox) {
    *this = initialValue;
}

template<typename PixelT>

lsst::afw::image::Image< PixelT >::Image ( Image< PixelT > const &  rhs, geom::Box2I const &  bbox, ImageOrigin const  origin = PARENT, const bool  deep = false  )

explicit

Copy constructor to make a copy of part of an Image.

The bbox ignores X0/Y0 if origin == LOCAL, and uses it if origin == PARENT.

Note

Unless deep is true, the new image will share the old image's pixels; this is probably what you want

Parameters

rhs	Right-hand-side Image
bbox	Specify desired region
origin	Coordinate system of the bbox
deep	If false, new ImageBase shares storage with rhs; if true make a new, standalone, ImageBase

Definition at line 466 of file Image.cc.

                             :
    image::ImageBase<PixelT>(rhs, bbox, origin, deep) {}

template<typename PixelT>

lsst::afw::image::Image< PixelT >::Image	(	const Image< PixelT > &	rhs,
		const bool	deep = false
	)

Copy constructor.

Note

Unless deep is true, the new image will share the old image's pixels; this may not be what you want. See also operator<<=() to copy pixels between Images

Parameters

rhs	Right-hand-side Image
deep	If false, new Image shares storage with rhs; if true make a new, standalone, ImageBase

Definition at line 451 of file Image.cc.

                             :
    image::ImageBase<PixelT>(rhs, deep) {}

template<typename PixelT>

lsst::afw::image::Image< PixelT >::Image ( std::string const &  fileName, int  hdu = 0, boost::shared_ptr< lsst::daf::base::PropertySet >  metadata = boost::shared_ptr< lsst::daf::base::PropertySet >(), geom::Box2I const &  bbox = geom::Box2I(), ImageOrigin  origin = PARENT  )

explicit

Construct an Image by reading a regular FITS file.

Parameters

[in]	fileName	File to read.
[in]	hdu	HDU to read, 1-indexed (i.e. 1=Primary HDU). The special value of 0 reads the Primary HDU unless it is empty, in which case it reads the first extension HDU.
[in,out]	metadata	Metadata read from the header (may be null).
[in]	bbox	If non-empty, read only the pixels within the bounding box.
[in]	origin	Coordinate system of the bounding box; if PARENT, the bounding box should take into account the xy0 saved with the image.

template<typename PixelT>

lsst::afw::image::Image< PixelT >::Image ( fits::MemFileManager &  manager, int  hdu = 0, boost::shared_ptr< lsst::daf::base::PropertySet >  metadata = boost::shared_ptr< lsst::daf::base::PropertySet >(), geom::Box2I const &  bbox = geom::Box2I(), ImageOrigin  origin = PARENT  )

explicit

Construct an Image by reading a FITS image in memory.

Parameters

[in]	manager	An object that manages the memory buffer to read.
[in]	hdu	HDU to read, 1-indexed (i.e. 1=Primary HDU). The special value of 0 reads the Primary HDU unless it is empty, in which case it reads the first extension HDU.
[in,out]	metadata	Metadata read from the header (may be null).
[in]	bbox	If non-empty, read only the pixels within the bounding box.
[in]	origin	Coordinate system of the bounding box; if PARENT, the bounding box should take into account the xy0 saved with the image.

template<typename PixelT>

lsst::afw::image::Image< PixelT >::Image ( fits::Fits &  fitsfile, boost::shared_ptr< lsst::daf::base::PropertySet >  metadata = boost::shared_ptr< lsst::daf::base::PropertySet >(), geom::Box2I const &  bbox = geom::Box2I(), ImageOrigin  origin = PARENT  )

explicit

Construct an Image from an already-open FITS object.

Parameters

[in]	fitsfile	A FITS object to read from, already at the desired HDU.
[in,out]	metadata	Metadata read from the header (may be null).
[in]	bbox	If non-empty, read only the pixels within the bounding box.
[in]	origin	Coordinate system of the bounding box; if PARENT, the bounding box should take into account the xy0 saved with the image.

template<typename PixelT>

template<typename OtherPixelT >

lsst::afw::image::Image< PixelT >::Image ( Image< OtherPixelT > const &  rhs, const bool  deep  )

inline

Definition at line 497 of file Image.h.

                                                              :
            image::ImageBase<PixelT>(rhs, deep) {}

template<typename PixelT>

lsst::afw::image::Image< PixelT >::Image ( ndarray::Array< PixelT, 2, 1 > const &  array, bool  deep = false, geom::Point2I const &  xy0 = geom::Point2I()  )

inlineexplicit

Definition at line 500 of file Image.h.

                                                                :
            image::ImageBase<PixelT>(array, deep, xy0) {}

template<typename PixelT>

virtual lsst::afw::image::Image< PixelT >::~Image ( )

inlinevirtual

Definition at line 504 of file Image.h.

{ }

Member Function Documentation

template<typename PixelT>

void lsst::afw::image::Image< PixelT >::operator*=

(

PixelT const

rhs

)

Multiply lhs by scalar rhs.

Definition at line 731 of file Image.cc.

                                                    {
    transform_pixels(_getRawView(), _getRawView(), bl::ret<PixelT>(bl::_1 * rhs));
}

template<typename PixelT>

void lsst::afw::image::Image< PixelT >::operator*=

(

Image< PixelT > const &

rhs

)

Multiply lhs by Image rhs (i.e. pixel-by-pixel multiplication)

Definition at line 737 of file Image.cc.

                                                            {
    if (this->getDimensions() != rhs.getDimensions()) {
        throw LSST_EXCEPT(lsst::pex::exceptions::LengthError,
                          (boost::format("Images are of different size, %dx%d v %dx%d") %
                           this->getWidth() % this->getHeight() % rhs.getWidth() % rhs.getHeight()).str());
    }
    transform_pixels(_getRawView(), rhs._getRawView(), _getRawView(), bl::ret<PixelT>(bl::_1 * bl::_2));
}

template<typename PixelT>

void lsst::afw::image::Image< PixelT >::operator+=

(

PixelT const

rhs

)

Add scalar rhs to lhs.

Definition at line 639 of file Image.cc.

                                                    {
    transform_pixels(_getRawView(), _getRawView(), bl::ret<PixelT>(bl::_1 + rhs));
}

template<typename PixelT>

void lsst::afw::image::Image< PixelT >::operator+= ( Image< PixelT >const &  rhs )

virtual

Add Image rhs to lhs.

Definition at line 645 of file Image.cc.

                                                            {
    if (this->getDimensions() != rhs.getDimensions()) {
        throw LSST_EXCEPT(lsst::pex::exceptions::LengthError,
                          (boost::format("Images are of different size, %dx%d v %dx%d") %
                           this->getWidth() % this->getHeight() % rhs.getWidth() % rhs.getHeight()).str());
    }
    transform_pixels(_getRawView(), rhs._getRawView(), _getRawView(), bl::ret<PixelT>(bl::_1 + bl::_2));
}

template<typename PixelT>

void lsst::afw::image::Image< PixelT >::operator+=

(

lsst::afw::math::Function2< double > const &

function

)

Add a Function2(x, y) to an Image.

Parameters

function

function to add

Definition at line 658 of file Image.cc.

                                       {
    for (int y = 0; y != this->getHeight(); ++y) {
        double const yPos = this->indexToPosition(y, image::Y);
        double xPos = this->indexToPosition(0, image::X);
        for (typename Image<PixelT>::x_iterator ptr = this->row_begin(y), end = this->row_end(y);
             ptr != end; ++ptr, ++xPos) {
            *ptr += function(xPos, yPos);
        }
    }
}

template<typename PixelT>

void lsst::afw::image::Image< PixelT >::operator-=

(

PixelT const

rhs

)

Subtract scalar rhs from lhs.

Definition at line 685 of file Image.cc.

                                                    {
    transform_pixels(_getRawView(), _getRawView(), bl::ret<PixelT>(bl::_1 - rhs));
}

template<typename PixelT>

void lsst::afw::image::Image< PixelT >::operator-=

(

Image< PixelT > const &

rhs

)

Subtract Image rhs from lhs.

Definition at line 691 of file Image.cc.

                                                            {
    if (this->getDimensions() != rhs.getDimensions()) {
        throw LSST_EXCEPT(lsst::pex::exceptions::LengthError,
                          (boost::format("Images are of different size, %dx%d v %dx%d") %
                           this->getWidth() % this->getHeight() % rhs.getWidth() % rhs.getHeight()).str());
    }
    transform_pixels(_getRawView(), rhs._getRawView(), _getRawView(), bl::ret<PixelT>(bl::_1 - bl::_2));
}

template<typename PixelT>

void lsst::afw::image::Image< PixelT >::operator-=

(

lsst::afw::math::Function2< double > const &

function

)

Subtract a Function2(x, y) from an Image.

Parameters

function

function to add

Definition at line 716 of file Image.cc.

                                       {
    for (int y = 0; y != this->getHeight(); ++y) {
        double const yPos = this->indexToPosition(y, image::Y);
        double xPos = this->indexToPosition(0, image::X);
        for (typename Image<PixelT>::x_iterator ptr = this->row_begin(y), end = this->row_end(y);
             ptr != end; ++ptr, ++xPos) {
            *ptr -= function(xPos, yPos);
        }
    }
}

template<typename PixelT>

void lsst::afw::image::Image< PixelT >::operator/=

(

PixelT const

rhs

)

Divide lhs by scalar rhs

Note

Floating point types implement this by multiplying by the 1/rhs

Definition at line 762 of file Image.cc.

                                                    {
    transform_pixels(_getRawView(), _getRawView(), bl::ret<PixelT>(bl::_1 / rhs));
}

template<typename PixelT>

void lsst::afw::image::Image< PixelT >::operator/=

(

Image< PixelT > const &

rhs

)

Divide lhs by Image rhs (i.e. pixel-by-pixel division)

Definition at line 784 of file Image.cc.

                                                            {
    if (this->getDimensions() != rhs.getDimensions()) {
        throw LSST_EXCEPT(lsst::pex::exceptions::LengthError,
                          (boost::format("Images are of different size, %dx%d v %dx%d") %
                           this->getWidth() % this->getHeight() % rhs.getWidth() % rhs.getHeight()).str());
    }
    transform_pixels(_getRawView(), rhs._getRawView(), _getRawView(), bl::ret<PixelT>(bl::_1 / bl::_2));
}

template<>

void lsst::afw::image::Image< double >::operator/=

(

double const

rhs

)

Definition at line 770 of file Image.cc.

                                               {
    double const irhs = 1/rhs;
    *this *= irhs;
}

template<>

void lsst::afw::image::Image< float >::operator/=

(

float const

rhs

)

Definition at line 776 of file Image.cc.

                                             {
    float const irhs = 1/rhs;
    *this *= irhs;
}

template<typename PixelT>

image::Image< PixelT > & lsst::afw::image::Image< PixelT >::operator=

(

const PixelT

rhs

)

Set the image's pixels to rhs.

Definition at line 476 of file Image.cc.

                                                                  {
    this->ImageBase<PixelT>::operator=(rhs);

    return *this;
}

template<typename PixelT>

image::Image< PixelT > & lsst::afw::image::Image< PixelT >::operator=

(

const Image< PixelT > &

rhs

)

Assignment operator.

Note

that this has the effect of making the lhs share pixels with the rhs which may not be what you intended; to copy the pixels, use operator<<=()

this behaviour is required to make the swig interface work, otherwise I'd declare this function private

Definition at line 490 of file Image.cc.

                                                                  {
    this->ImageBase<PixelT>::operator=(rhs);

    return *this;
}

template<typename PixelT>

static Image lsst::afw::image::Image< PixelT >::readFits ( std::string const &  filename, int  hdu = 0  )

inlinestatic

Read an Image from a regular FITS file.

Parameters

[in]	filename	Name of the file to read.
[in]	hdu	Number of the "header-data unit" to read (where 1 is the Primary HDU). The default value of 0 is interpreted as "the first HDU with NAXIS != 0".

Definition at line 555 of file Image.h.

                                                                     {
            return Image<PixelT>(filename, hdu);
        }

template<typename PixelT>

static Image lsst::afw::image::Image< PixelT >::readFits ( fits::MemFileManager &  manager, int  hdu = 0  )

inlinestatic

Read an Image from a FITS RAM file.

Parameters

[in]	manager	Object that manages the memory to be read.
[in]	hdu	Number of the "header-data unit" to read (where 1 is the Primary HDU). The default value of 0 is interpreted as "the first HDU with NAXIS != 0".

Definition at line 566 of file Image.h.

                                                                       {
            return Image<PixelT>(manager, hdu);
        }

template<typename PixelT>

void lsst::afw::image::Image< PixelT >::scaledDivides	(	double const	c,
		Image< PixelT >const &	rhs
	)

Divide lhs by Image c*rhs (i.e. pixel-by-pixel division)

Definition at line 795 of file Image.cc.

                                                                               {
    if (this->getDimensions() != rhs.getDimensions()) {
        throw LSST_EXCEPT(lsst::pex::exceptions::LengthError,
                          (boost::format("Images are of different size, %dx%d v %dx%d") %
                           this->getWidth() % this->getHeight() % rhs.getWidth() % rhs.getHeight()).str());
    }
    transform_pixels(_getRawView(), rhs._getRawView(), _getRawView(),
                     bl::ret<PixelT>(bl::_1 / bl::ret<PixelT>(c*bl::_2)));
}

template<typename PixelT>

void lsst::afw::image::Image< PixelT >::scaledMinus	(	double const	c,
		Image< PixelT >const &	rhs
	)

Subtract Image c*rhs from lhs.

Definition at line 702 of file Image.cc.

                                                                             {
    if (this->getDimensions() != rhs.getDimensions()) {
        throw LSST_EXCEPT(lsst::pex::exceptions::LengthError,
                          (boost::format("Images are of different size, %dx%d v %dx%d") %
                           this->getWidth() % this->getHeight() % rhs.getWidth() % rhs.getHeight()).str());
    }
    transform_pixels(_getRawView(), rhs._getRawView(), _getRawView(),
                     bl::ret<PixelT>(bl::_1 - bl::ret<PixelT>(c*bl::_2)));
}

template<typename PixelT>

void lsst::afw::image::Image< PixelT >::scaledMultiplies	(	double const	c,
		Image< PixelT >const &	rhs
	)

Multiply lhs by Image c*rhs (i.e. pixel-by-pixel multiplication)

Definition at line 748 of file Image.cc.

                                                                                  {
    if (this->getDimensions() != rhs.getDimensions()) {
        throw LSST_EXCEPT(lsst::pex::exceptions::LengthError,
                          (boost::format("Images are of different size, %dx%d v %dx%d") %
                           this->getWidth() % this->getHeight() % rhs.getWidth() % rhs.getHeight()).str());
    }
    transform_pixels(_getRawView(), rhs._getRawView(), _getRawView(),
                     bl::ret<PixelT>(bl::_1 * bl::ret<PixelT>(c*bl::_2)));
}

template<typename PixelT>

void lsst::afw::image::Image< PixelT >::scaledPlus	(	double const	c,
		Image< PixelT >const &	rhs
	)

Add Image c*rhs to lhs.

Definition at line 673 of file Image.cc.

                                                                            {
    if (this->getDimensions() != rhs.getDimensions()) {
        throw LSST_EXCEPT(lsst::pex::exceptions::LengthError,
                          (boost::format("Images are of different size, %dx%d v %dx%d") %
                           this->getWidth() % this->getHeight() % rhs.getWidth() % rhs.getHeight()).str());
    }
    transform_pixels(_getRawView(), rhs._getRawView(), _getRawView(),
                     bl::ret<PixelT>(bl::_1 + bl::ret<PixelT>(c*bl::_2)));
}

template<typename PixelT >

void lsst::afw::image::Image< PixelT >::sqrt

(

)

Definition at line 632 of file Image.cc.

                              {
     transform_pixels(_getRawView(), _getRawView(),
                      boost::bind(mysqrt<PixelT>, bl::_1));
}

template<typename PixelT >

void lsst::afw::image::Image< PixelT >::swap

(

Image< PixelT > &

rhs

)

Definition at line 602 of file Image.cc.

                                        {
    using std::swap;                    // See Meyers, Effective C++, Item 25
    ImageBase<PixelT>::swap(rhs);
    ;                                   // no private variables to swap
}

template<typename PixelT>

void lsst::afw::image::Image< PixelT >::writeFits	(	std::string const &	fileName,
		boost::shared_ptr< lsst::daf::base::PropertySet const >	metadata = boost::shared_ptr< lsst::daf::base::PropertySet const  >(),
		std::string const &	mode = "w"
	)		const

Write an image to a regular FITS file.

Parameters

[in]	fileName	Name of the file to write.
[in]	metadata	Additional values to write to the header (may be null).
[in]	mode	"w"=Create a new file; "a"=Append a new HDU.

template<typename PixelT>

void lsst::afw::image::Image< PixelT >::writeFits	(	fits::MemFileManager &	manager,
		boost::shared_ptr< lsst::daf::base::PropertySet const >	metadata = boost::shared_ptr< lsst::daf::base::PropertySet const  >(),
		std::string const &	mode = "w"
	)		const

Write an image to a FITS RAM file.

Parameters

[in]	manager	Manager object for the memory block to write to.
[in]	metadata	Additional values to write to the header (may be null).
[in]	mode	"w"=Create a new file; "a"=Append a new HDU.

template<typename PixelT>

void lsst::afw::image::Image< PixelT >::writeFits	(	fits::Fits &	fitsfile,
		boost::shared_ptr< lsst::daf::base::PropertySet const >	metadata = boost::shared_ptr< lsst::daf::base::PropertySet const  >()
	)		const

Write an image to an open FITS file object.

Parameters

[in]	fitsfile	A FITS file already open to the desired HDU.
[in]	metadata	Additional values to write to the header (may be null).

Friends And Related Function Documentation

template<typename PixelT>

template<typename OtherPixelT >

friend class Image

friend

Definition at line 431 of file Image.h.

template<typename ImageT >

ImageT::SinglePixel badPixel ( typename ImageT::Pixel  bad = 0 )

related

Return a value indicating a bad pixel for the given Image type

A quiet NaN is returned for types that support it otherwise bad

Parameters

bad	The bad value if NaN isn't supported

Definition at line 70 of file Utils.h.

                                       {
    typedef typename ImageT::SinglePixel SinglePixelT;
    return SinglePixelT(std::numeric_limits<SinglePixelT>::has_quiet_NaN ?
                        std::numeric_limits<SinglePixelT>::quiet_NaN() : bad);
}

template<typename PixelT>

template<typename , typename , typename >

friend class MaskedImage

friend

Definition at line 417 of file Image.h.

---

The documentation for this class was generated from the following files:

• /lsst/home/lsstsw/stack/Linux64/afw/master-gae20e2b580+3/include/lsst/afw/image/Image.h
• /lsst/home/lsstsw/stack/Linux64/afw/master-gae20e2b580+3/include/lsst/afw/image/Utils.h
• /lsst/home/lsstsw/stack/Linux64/afw/master-gae20e2b580+3/src/image/Image.cc
