A FunctorKey used to get or set a ndarray::Array from a sequence of scalar Keys. More...

#include <arrays.h>

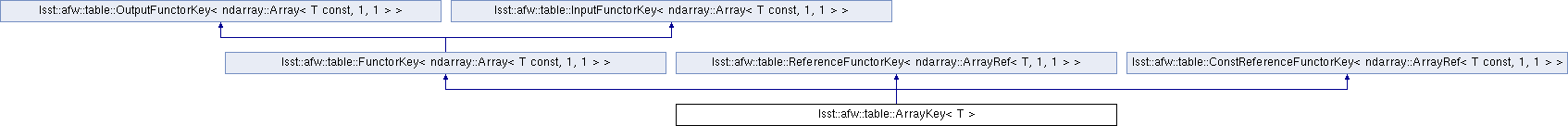

Inheritance diagram for lsst::afw::table::ArrayKey< T >:

Public Member Functions
	ArrayKey ()
	Default constructor; instance will not be usuable unless subsequently assigned to. More...

	ArrayKey (std::vector< Key< T > > const &keys)
	Construct from a vector of scalar Keys. More...

	ArrayKey (Key< Array< T > > const &other)

	ArrayKey (SubSchema const &s)
	Construct from a subschema, assuming _0, _1, *_2, etc. subfields. More...

int	getSize () const
	Return the number of elements in the array. More...

virtual ndarray::Array< T const, 1, 1 >	get (BaseRecord const &record) const
	Get an array from the given record. More...

virtual void	set (BaseRecord &record, ndarray::Array< T const, 1, 1 > const &value) const
	Set an array in the given record. More...

virtual ndarray::ArrayRef< T, 1, 1 >	getReference (BaseRecord &record) const
	Get non-const reference array from the given record. More...

virtual ndarray::ArrayRef< T const, 1, 1 >	getConstReference (BaseRecord const &record) const
	Get const reference array from the given record. More...

bool	isValid () const
	Return True if the FunctorKey contains valid scalar keys. More...

Key< T >	operator[] (int i) const
	Return a scalar Key for an element of the array. More...

ArrayKey	slice (int begin, int end) const
	Return a FunctorKey corresponding to a range of elements. More...


bool	operator== (ArrayKey< T > const &other) const
	Compare the FunctorKey for equality with another, using the underlying scalar Keys. More...

bool	operator!= (ArrayKey< T > const &other) const
	Compare the FunctorKey for equality with another, using the underlying scalar Keys. More...

Public Member Functions inherited from lsst::afw::table::OutputFunctorKey< ndarray::Array< T const, 1, 1 > >
virtual	~OutputFunctorKey ()

Public Member Functions inherited from lsst::afw::table::InputFunctorKey< ndarray::Array< T const, 1, 1 > >
virtual	~InputFunctorKey ()

Public Member Functions inherited from lsst::afw::table::ReferenceFunctorKey< ndarray::ArrayRef< T, 1, 1 > >
virtual	~ReferenceFunctorKey ()

Public Member Functions inherited from lsst::afw::table::ConstReferenceFunctorKey< ndarray::ArrayRef< T const, 1, 1 > >
virtual	~ConstReferenceFunctorKey ()

Static Public Member Functions
static ArrayKey	addFields (Schema &schema, std::string const &name, std::string const &doc, std::string const &unit, std::vector< T > const &docData)

static ArrayKey	addFields (Schema &schema, std::string const &name, std::string const &doc, std::string const &unit, int size)

Private Member Functions
	ArrayKey (Key< T > const &begin, int size)

Private Attributes
Key< T >	_begin

int	_size

Detailed Description

template<typename T>
class lsst::afw::table::ArrayKey< T >

A FunctorKey used to get or set a ndarray::Array from a sequence of scalar Keys.

ArrayKey operates on the convention that arrays are defined by a set of contiguous scalar fields (i.e. added to the Schema in order, with no interruption) of the same type, with a common field name prefix and "_0", "_1" etc. suffixes.

Definition at line 39 of file arrays.h.

Constructor & Destructor Documentation

template<typename T>

lsst::afw::table::ArrayKey< T >::ArrayKey ( )

inline

Default constructor; instance will not be usuable unless subsequently assigned to.

Definition at line 86 of file arrays.h.

86 : _begin() {}

lsst::afw::table::ArrayKey::_begin

Key< T > _begin

Definition: arrays.h:148

template<typename T>

lsst::afw::table::ArrayKey< T >::ArrayKey ( std::vector< Key< T > > const & keys )

explicit

Construct from a vector of scalar Keys.

template<typename T>

lsst::afw::table::ArrayKey< T >::ArrayKey ( Key< Array< T > > const & other )

explicit

Construct from a compound Key< Array<T> >

Key< Array<T> > is now deprecated in favor of ArrayKey; this factory function is intended to aid in the transition.

template<typename T>

lsst::afw::table::ArrayKey< T >::ArrayKey ( SubSchema const & s )

Construct from a subschema, assuming *_0, *_1, *_2, etc. subfields.

If a schema has "a_0", "a_1", and "a_2" fields, this constructor allows you to construct a 3-element ArrayKey via:

* ArrayKey<T> k(schema["a"]);

*

template<typename T>

lsst::afw::table::ArrayKey< T >::ArrayKey	(	Key< T > const &	begin,
		int	size
	)

inlineprivate

Definition at line 146 of file arrays.h.

146 : _begin(begin), _size(size) {}

lsst::afw::table::ArrayKey::_begin

Key< T > _begin

Definition: arrays.h:148

lsst::afw::table::ArrayKey::_size

int _size

Definition: arrays.h:149

Member Function Documentation

template<typename T>

static ArrayKey lsst::afw::table::ArrayKey< T >::addFields	(	Schema &	schema,
		std::string const &	name,
		std::string const &	doc,
		std::string const &	unit,
		std::vector< T > const &	docData
	)

static

Add an array of fields to a Schema, and return an ArrayKey that points to them.

Parameters

[in,out]	schema	Schema to add fields to.
[in]	name	Name prefix for all fields; "_0", "_1", etc. will be appended to this to form the full field names.
[in]	doc	String used as the documentation for the fields. Should include a single boost::format template string, which will be substituted with the appropriate element from the docData array to form the full documentation string.
[in]	unit	String used as the unit for all fields.
[in]	docData	Vector of values substituted into the doc fields. The length of the vector determines the number of fields added.

template<typename T>

static ArrayKey lsst::afw::table::ArrayKey< T >::addFields	(	Schema &	schema,
		std::string const &	name,
		std::string const &	doc,
		std::string const &	unit,
		int	size
	)

static

Add an array of fields to a Schema, and return an ArrayKey that points to them.

Parameters

[in,out]	schema	Schema to add fields to.
[in]	name	Name prefix for all fields; "_0", "_1", etc. will be appended to this to form the full field names.
[in]	doc	String used as the documentation for the fields.
[in]	unit	String used as the unit for all fields.
[in]	size	Number of fields to add.

template<typename T>

virtual ndarray::Array<T const,1,1> lsst::afw::table::ArrayKey< T >::get ( BaseRecord const & record ) const

virtual

Get an array from the given record.

Implements lsst::afw::table::OutputFunctorKey< ndarray::Array< T const, 1, 1 > >.

template<typename T>

virtual ndarray::ArrayRef<T const,1,1> lsst::afw::table::ArrayKey< T >::getConstReference ( BaseRecord const & record ) const

virtual

Get const reference array from the given record.

Implements lsst::afw::table::ConstReferenceFunctorKey< ndarray::ArrayRef< T const, 1, 1 > >.

template<typename T>

virtual ndarray::ArrayRef<T,1,1> lsst::afw::table::ArrayKey< T >::getReference ( BaseRecord & record ) const

virtual

Get non-const reference array from the given record.

Implements lsst::afw::table::ReferenceFunctorKey< ndarray::ArrayRef< T, 1, 1 > >.

template<typename T>

int lsst::afw::table::ArrayKey< T >::getSize ( ) const

inline

Return the number of elements in the array.

Definition at line 111 of file arrays.h.

111 { return _size; }

lsst::afw::table::ArrayKey::_size

int _size

Definition: arrays.h:149

template<typename T>

bool lsst::afw::table::ArrayKey< T >::isValid ( ) const

inline

Return True if the FunctorKey contains valid scalar keys.

Definition at line 136 of file arrays.h.

136 { return _begin.isValid(); }

lsst::afw::table::ArrayKey::_begin

Key< T > _begin

Definition: arrays.h:148

template<typename T>

bool lsst::afw::table::ArrayKey< T >::operator!= ( ArrayKey< T > const & other ) const

inline

Compare the FunctorKey for equality with another, using the underlying scalar Keys.

Definition at line 132 of file arrays.h.

132 { return !operator==(other); }

lsst::afw::table::ArrayKey::operator==

bool operator==(ArrayKey< T > const &other) const

Compare the FunctorKey for equality with another, using the underlying scalar Keys.

Definition: arrays.h:129

template<typename T>

bool lsst::afw::table::ArrayKey< T >::operator== ( ArrayKey< T > const & other ) const

inline

Compare the FunctorKey for equality with another, using the underlying scalar Keys.

Definition at line 129 of file arrays.h.

                                                      {
         return other._begin == _begin && other._size == _size;
     }

template<typename T>

Key<T> lsst::afw::table::ArrayKey< T >::operator[] ( int i ) const

Return a scalar Key for an element of the array.

template<typename T>

virtual void lsst::afw::table::ArrayKey< T >::set	(	BaseRecord &	record,
		ndarray::Array< T const, 1, 1 > const &	value
	)		const

virtual

Set an array in the given record.

Implements lsst::afw::table::InputFunctorKey< ndarray::Array< T const, 1, 1 > >.

template<typename T>

ArrayKey lsst::afw::table::ArrayKey< T >::slice	(	int	begin,
		int	end
	)		const

Return a FunctorKey corresponding to a range of elements.

Member Data Documentation

template<typename T>

Key<T> lsst::afw::table::ArrayKey< T >::_begin

private

Definition at line 148 of file arrays.h.

template<typename T>

int lsst::afw::table::ArrayKey< T >::_size

private

Definition at line 149 of file arrays.h.

The documentation for this class was generated from the following file:

/lsst/home/lsstsw/stack/Linux64/afw/master-gae20e2b580+3/include/lsst/afw/table/arrays.h
