lsst.afw.math::SquaredExpCovariogram< T > Class Template Reference

a Covariogram that falls off as the negative exponent of the square of the distance between the points More...

#include <GaussianProcess.h>

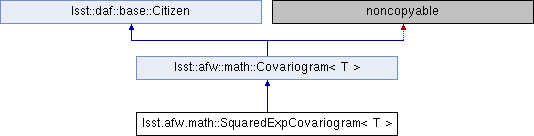

Inheritance diagram for lsst.afw.math::SquaredExpCovariogram< T >:

Public Member Functions
virtual	~SquaredExpCovariogram ()
	SquaredExpCovariogram ()
void	setEllSquared (double ellSquared)
	set the _ellSquared hyper parameter (the square of the characteristic length scale of the covariogram) More...
virtual T	operator() (ndarray::Array< const T, 1, 1 > const &, ndarray::Array< const T, 1, 1 > const &) const
	Actually evaluate the covariogram function relating two points you want to interpolate from. More...
Public Member Functions inherited from lsst.afw.math::Covariogram< T >
virtual	~Covariogram ()
	Covariogram ()
	construct a Covariogram assigning default values to the hyper parameters More...
Public Member Functions inherited from lsst::daf::base::Citizen
	Citizen (const std::type_info &)
	Citizen (Citizen const &)
	~Citizen ()
Citizen &	operator= (Citizen const &)
std::string	repr () const
	Return a string representation of a Citizen. More...
void	markPersistent (void)
	Mark a Citizen as persistent and not destroyed until process end. More...
memId	getId () const
	Return the Citizen's ID. More...

Private Attributes
double	_ellSquared

Additional Inherited Members
Public Types inherited from lsst::daf::base::Citizen
enum	{ magicSentinel = 0xdeadbeef }
typedef unsigned long	memId
	Type of the block's ID. More...
typedef memId(*	memNewCallback )(const memId cid)
	A function used to register a callback. More...
typedef memId(*	memCallback )(const Citizen *ptr)
Static Public Member Functions inherited from lsst::daf::base::Citizen
static bool	hasBeenCorrupted ()
	Check all allocated blocks for corruption. More...
static memId	getNextMemId ()
	Return the memId of the next object to be allocated. More...
static int	init ()
	Called once when the memory system is being initialised. More...
static int	census (int, memId startingMemId=0)
	How many active Citizens are there? More...
static void	census (std::ostream &stream, memId startingMemId=0)
	Print a list of all active Citizens to stream, sorted by ID. More...
static const std::vector < const Citizen * > *	census ()
	Return a (newly allocated) std::vector of active Citizens sorted by ID. More...
static memId	setNewCallbackId (memId id)
	Call the NewCallback when block is allocated. More...
static memId	setDeleteCallbackId (memId id)
	Call the current DeleteCallback when block is deleted. More...
static memNewCallback	setNewCallback (memNewCallback func)
	Set the NewCallback function. More...
static memCallback	setDeleteCallback (memCallback func)
	Set the DeleteCallback function. More...
static memCallback	setCorruptionCallback (memCallback func)
	Set the CorruptionCallback function. More...

Detailed Description

template<typename T>
class lsst.afw.math::SquaredExpCovariogram< T >

a Covariogram that falls off as the negative exponent of the square of the distance between the points

Contains one hyper parameter (_ellSquared) encoding the square of the characteristic length scale of the covariogram

Definition at line 168 of file GaussianProcess.h.

Constructor & Destructor Documentation

template<typename T >

lsst.afw.math::SquaredExpCovariogram< T >::~SquaredExpCovariogram ( )

virtual

Definition at line 1833 of file GaussianProcess.cc.

{}

template<typename T >

lsst.afw.math::SquaredExpCovariogram< T >::SquaredExpCovariogram ( )

explicit

Definition at line 1836 of file GaussianProcess.cc.

{
    _ellSquared = 1.0;
}

Member Function Documentation

template<typename T >

T lsst.afw.math::SquaredExpCovariogram< T >::operator() ( ndarray::Array< const T, 1, 1 > const &  p1, ndarray::Array< const T, 1, 1 > const &  p2  ) const

virtual

Actually evaluate the covariogram function relating two points you want to interpolate from.

Parameters

[in]	p1	the first point
[in]	p2	the second point

Reimplemented from lsst.afw.math::Covariogram< T >.

Definition at line 1848 of file GaussianProcess.cc.

{
    int i;
    T d;
    d = 0.0;
    for(i = 0; i < p1.template getSize < 0 > (); i++ ){
        d += (p1[i] - p2[i])*(p1[i] - p2[i]);
    }

    d = d/_ellSquared;
    return T(exp( - 0.5*d));
}

template<typename T >

void lsst.afw.math::SquaredExpCovariogram< T >::setEllSquared

(

double

ellSquared

)

set the _ellSquared hyper parameter (the square of the characteristic length scale of the covariogram)

Definition at line 1842 of file GaussianProcess.cc.

{
    _ellSquared = ellSquared;
}

Member Data Documentation

template<typename T >

double lsst.afw.math::SquaredExpCovariogram< T >::_ellSquared

private

Definition at line 186 of file GaussianProcess.h.

---

The documentation for this class was generated from the following files:

• /home/lsstsw/stack/Linux64/afw/11.0.rc2+4/include/lsst/afw/math/GaussianProcess.h
• /home/lsstsw/stack/Linux64/afw/11.0.rc2+4/src/math/GaussianProcess.cc
