Represent a PSF as a linear combination of PCA (== Karhunen-Loeve) basis functions. More...

#include <PcaPsf.h>

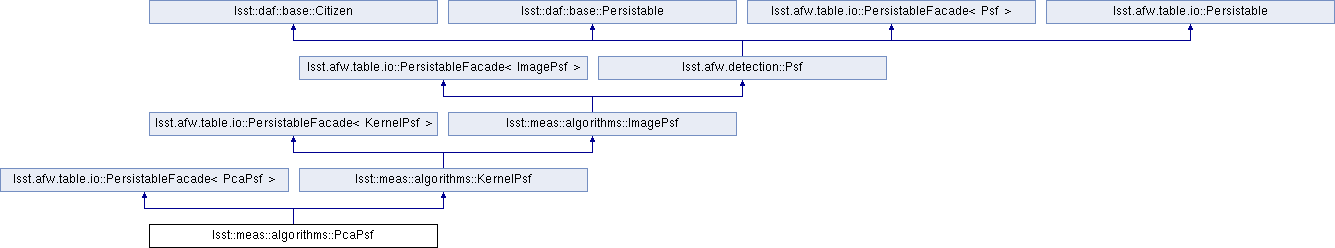

Inheritance diagram for lsst::meas::algorithms::PcaPsf:

Public Member Functions
	PcaPsf (boost::shared_ptr< afw::math::LinearCombinationKernel > kernel, afw::geom::Point2D const &averagePosition=afw::geom::Point2D())
	Constructor for a PcaPsf. More...

virtual boost::shared_ptr < afw::detection::Psf >	clone () const
	Polymorphic deep copy; should usually be unnecessary as Psfs are immutable.x. More...

boost::shared_ptr < afw::math::LinearCombinationKernel const >	getKernel () const
	PcaPsf always has a LinearCombinationKernel, so we can override getKernel to make it more useful. More...

Public Member Functions inherited from lsst::meas::algorithms::KernelPsf
	KernelPsf (afw::math::Kernel const &kernel, afw::geom::Point2D const &averagePosition=afw::geom::Point2D())
	Construct a KernelPsf with a clone of the given kernel. More...

boost::shared_ptr < afw::math::Kernel const >	getKernel () const
	Return the Kernel used to define this Psf. More...

virtual afw::geom::Point2D	getAveragePosition () const
	Return average position of stars; used as default position. More...

virtual bool	isPersistable () const
	Whether this object is persistable; just delegates to the kernel. More...

Public Member Functions inherited from lsst.afw.detection::Psf
virtual	~Psf ()

boost::shared_ptr< Image >	computeImage (geom::Point2D position=makeNullPoint(), image::Color color=image::Color(), ImageOwnerEnum owner=COPY) const
	Return an Image of the PSF, in a form that can be compared directly with star images. More...

boost::shared_ptr< Image >	computeKernelImage (geom::Point2D position=makeNullPoint(), image::Color color=image::Color(), ImageOwnerEnum owner=COPY) const
	Return an Image of the PSF, in a form suitable for convolution. More...

double	computePeak (geom::Point2D position=makeNullPoint(), image::Color color=image::Color()) const
	Return the peak value of the PSF image. More...

double	computeApertureFlux (double radius, geom::Point2D position=makeNullPoint(), image::Color color=image::Color()) const
	Compute the "flux" of the Psf model within a circular aperture of the given radius. More...

geom::ellipses::Quadrupole	computeShape (geom::Point2D position=makeNullPoint(), image::Color color=image::Color()) const
	Compute the ellipse corresponding to the second moments of the Psf. More...

boost::shared_ptr < math::Kernel const >	getLocalKernel (geom::Point2D position=makeNullPoint(), image::Color color=image::Color()) const
	Return a FixedKernel corresponding to the Psf image at the given point. More...

image::Color	getAverageColor () const
	Return the average Color of the stars used to construct the Psf. More...

Public Member Functions inherited from lsst::daf::base::Citizen
	Citizen (const std::type_info &)

	Citizen (Citizen const &)

	~Citizen ()

Citizen &	operator= (Citizen const &)

std::string	repr () const
	Return a string representation of a Citizen. More...

void	markPersistent (void)
	Mark a Citizen as persistent and not destroyed until process end. More...

memId	getId () const
	Return the Citizen's ID. More...

Public Member Functions inherited from lsst::daf::base::Persistable
	Persistable (void)

virtual	~Persistable (void)

template<class Archive >
void	serialize (Archive &, unsigned int const)

Public Member Functions inherited from lsst.afw.table.io::Persistable
void	writeFits (std::string const &fileName, std::string const &mode="w") const
	Write the object to a regular FITS file. More...

void	writeFits (fits::MemFileManager &manager, std::string const &mode="w") const
	Write the object to a FITS image in memory. More...

void	writeFits (fits::Fits &fitsfile) const
	Write the object to an already-open FITS object. More...

virtual	~Persistable ()

Private Member Functions
virtual std::string	getPersistenceName () const
	Return the unique name used to persist this object and look up its factory. More...

template<class Archive >
void	serialize (Archive &, unsigned int const)

Friends
class	boost::serialization::access

Additional Inherited Members
Public Types inherited from lsst.afw.detection::Psf
enum	ImageOwnerEnum { COPY =0, INTERNAL =1 }
	Enum passed to computeImage and computeKernelImage to determine image ownership. More...

typedef boost::shared_ptr< Psf >	Ptr

typedef boost::shared_ptr < const Psf >	ConstPtr

typedef math::Kernel::Pixel	Pixel
	Pixel type of Image returned by computeImage. More...

typedef image::Image< Pixel >	Image
	Image type returned by computeImage. More...

Public Types inherited from lsst::daf::base::Citizen
enum	{ magicSentinel = 0xdeadbeef }

typedef unsigned long	memId
	Type of the block's ID. More...

typedef memId(*	memNewCallback )(const memId cid)
	A function used to register a callback. More...

typedef memId(*	memCallback )(const Citizen *ptr)

Public Types inherited from lsst::daf::base::Persistable
typedef boost::shared_ptr < Persistable >	Ptr

Static Public Member Functions inherited from lsst.afw.table.io::PersistableFacade< PcaPsf >
static boost::shared_ptr< PcaPsf >	readFits (fits::Fits &fitsfile)
	Read an object from an already open FITS object. More...

static boost::shared_ptr< PcaPsf >	readFits (std::string const &fileName, int hdu=0)
	Read an object from a regular FITS file. More...

static boost::shared_ptr< PcaPsf >	readFits (fits::MemFileManager &manager, int hdu=0)
	Read an object from a FITS file in memory. More...

Static Public Member Functions inherited from lsst.afw.table.io::PersistableFacade< KernelPsf >
static boost::shared_ptr < KernelPsf >	readFits (fits::Fits &fitsfile)
	Read an object from an already open FITS object. More...

static boost::shared_ptr < KernelPsf >	readFits (std::string const &fileName, int hdu=0)
	Read an object from a regular FITS file. More...

static boost::shared_ptr < KernelPsf >	readFits (fits::MemFileManager &manager, int hdu=0)
	Read an object from a FITS file in memory. More...

Static Public Member Functions inherited from lsst.afw.table.io::PersistableFacade< ImagePsf >
static boost::shared_ptr < ImagePsf >	readFits (fits::Fits &fitsfile)
	Read an object from an already open FITS object. More...

static boost::shared_ptr < ImagePsf >	readFits (std::string const &fileName, int hdu=0)
	Read an object from a regular FITS file. More...

static boost::shared_ptr < ImagePsf >	readFits (fits::MemFileManager &manager, int hdu=0)
	Read an object from a FITS file in memory. More...

Static Public Member Functions inherited from lsst.afw.detection::Psf
static boost::shared_ptr< Image >	recenterKernelImage (boost::shared_ptr< Image > im, geom::Point2D const &position, std::string const &warpAlgorithm="lanczos5", unsigned int warpBuffer=5)

Static Public Member Functions inherited from lsst::daf::base::Citizen
static bool	hasBeenCorrupted ()
	Check all allocated blocks for corruption. More...

static memId	getNextMemId ()
	Return the memId of the next object to be allocated. More...

static int	init ()
	Called once when the memory system is being initialised. More...

static int	census (int, memId startingMemId=0)
	How many active Citizens are there? More...

static void	census (std::ostream &stream, memId startingMemId=0)
	Print a list of all active Citizens to stream, sorted by ID. More...

static const std::vector < const Citizen * > *	census ()
	Return a (newly allocated) std::vector of active Citizens sorted by ID. More...

static memId	setNewCallbackId (memId id)
	Call the NewCallback when block is allocated. More...

static memId	setDeleteCallbackId (memId id)
	Call the current DeleteCallback when block is deleted. More...

static memNewCallback	setNewCallback (memNewCallback func)
	Set the NewCallback function. More...

static memCallback	setDeleteCallback (memCallback func)
	Set the DeleteCallback function. More...

static memCallback	setCorruptionCallback (memCallback func)
	Set the CorruptionCallback function. More...

Static Public Member Functions inherited from lsst.afw.table.io::PersistableFacade< Psf >
static boost::shared_ptr< Psf >	readFits (fits::Fits &fitsfile)
	Read an object from an already open FITS object. More...

static boost::shared_ptr< Psf >	readFits (std::string const &fileName, int hdu=0)
	Read an object from a regular FITS file. More...

static boost::shared_ptr< Psf >	readFits (fits::MemFileManager &manager, int hdu=0)
	Read an object from a FITS file in memory. More...

Protected Types inherited from lsst.afw.table.io::Persistable
typedef io::OutputArchiveHandle	OutputArchiveHandle

Protected Member Functions inherited from lsst::meas::algorithms::KernelPsf
	KernelPsf (boost::shared_ptr< afw::math::Kernel > kernel, afw::geom::Point2D const &averagePosition=afw::geom::Point2D())
	Construct a KernelPsf with the given kernel; it should not be modified afterwards. More...

virtual std::string	getPythonModule () const
	Return the fully-qualified Python module that should be imported to guarantee that its factory is registered. More...

virtual void	write (OutputArchiveHandle &handle) const
	Write the object to one or more catalogs. More...

Protected Member Functions inherited from lsst::meas::algorithms::ImagePsf
	ImagePsf (bool isFixed=false)

virtual double	doComputeApertureFlux (double radius, afw::geom::Point2D const &position, afw::image::Color const &color) const

virtual afw::geom::ellipses::Quadrupole	doComputeShape (afw::geom::Point2D const &position, afw::image::Color const &color) const

Protected Member Functions inherited from lsst.afw.detection::Psf
	Psf (bool isFixed=false)

Protected Member Functions inherited from lsst.afw.table.io::Persistable
	Persistable ()

	Persistable (Persistable const &other)

void	operator= (Persistable const &other)

Detailed Description

Represent a PSF as a linear combination of PCA (== Karhunen-Loeve) basis functions.

Definition at line 34 of file PcaPsf.h.

Constructor & Destructor Documentation

lsst::meas::algorithms::PcaPsf::PcaPsf	(	boost::shared_ptr< afw::math::LinearCombinationKernel >	kernel,
		afw::geom::Point2D const &	averagePosition = `afw::geom::Point2D()`
	)

explicit

Constructor for a PcaPsf.

Parameters

[in]	kernel	Kernel that defines the Psf.
[in]	averagePosition	Average position of stars used to construct the Psf.

Member Function Documentation

virtual boost::shared_ptr< afw::detection::Psf > lsst::meas::algorithms::PcaPsf::clone ( ) const

virtual

Polymorphic deep copy; should usually be unnecessary as Psfs are immutable.x.

Reimplemented from lsst::meas::algorithms::KernelPsf.

boost::shared_ptr< afw::math::LinearCombinationKernel const > lsst::meas::algorithms::PcaPsf::getKernel ( ) const

PcaPsf always has a LinearCombinationKernel, so we can override getKernel to make it more useful.

virtual std::string lsst::meas::algorithms::PcaPsf::getPersistenceName ( ) const

inlineprivatevirtual

Return the unique name used to persist this object and look up its factory.

Must be less than ArchiveIndexSchema::MAX_NAME_LENGTH characters.

Reimplemented from lsst::meas::algorithms::KernelPsf.

Definition at line 57 of file PcaPsf.h.

57 { return "PcaPsf"; }

template<class Archive >

void lsst::meas::algorithms::PcaPsf::serialize	(	Archive &	,
		unsigned int	const
	)

inlineprivate

Definition at line 62 of file PcaPsf.h.

                                                  {
         boost::serialization::void_cast_register<PcaPsf,
             lsst::afw::detection::Psf>(static_cast<PcaPsf*>(0), static_cast<lsst::afw::detection::Psf*>(0));
     }

Friends And Related Function Documentation

friend class boost::serialization::access

friend

Definition at line 59 of file PcaPsf.h.

The documentation for this class was generated from the following file:

/home/lsstsw/stack/Linux64/meas_algorithms/11.0.rc2+3/include/lsst/meas/algorithms/PcaPsf.h
