lsst.ip.isr.isrMockLSST.IsrMockLSST Class Reference

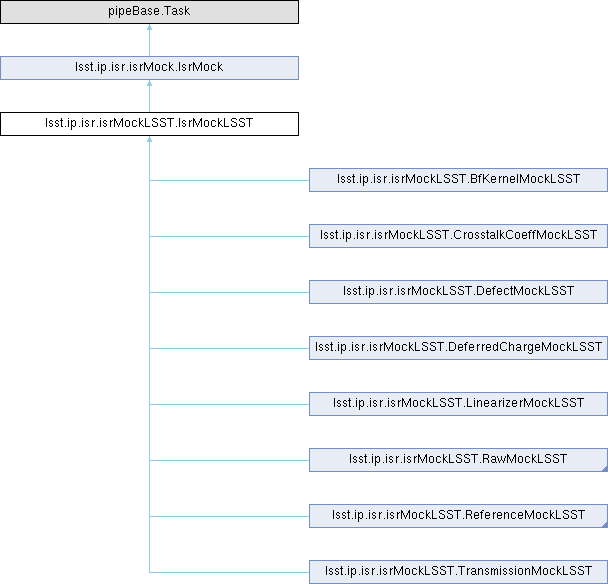

Inheritance diagram for lsst.ip.isr.isrMockLSST.IsrMockLSST:

Public Member Functions
	__init__ (self, **kwargs)
	run (self)
	makeImage (self)
	addBiasLevel (self, ampData, biasLevel)
	makeDefectList (self, isTrimmed=True)
	makeBfKernel (self)
	makeDeferredChargeCalib (self)
	amplifierAddBrighterFatter (self, ampImageData, rng, bfStrength, nRecalc)
	amplifierAddDeferredCharge (self, exposure, amp)
	makeLinearizer (self)
	amplifierAddNonlinearity (self, ampData, centers, values, offset)
	amplifierMultiplyFlat (self, amp, ampData, fracDrop, u0=100.0, v0=100.0)
	applyGain (self, ampData, gain)
	roundADU (self, ampData)
	amplifierAddXGradient (self, ampData, start, end)
	getFullSerialOverscanBBox (self, amp)

Public Attributes
	bfKernel
	splineTrapCoeffs
	ctiCalibDict
	deferredChargeCalib
	cti

Static Public Attributes
	ConfigClass = IsrMockLSSTConfig

Static Protected Attributes
str	_DefaultName = "isrMockLSST"

Detailed Description

Class to generate consistent mock images for ISR testing.

Definition at line 220 of file isrMockLSST.py.

Constructor & Destructor Documentation

__init__()

lsst.ip.isr.isrMockLSST.IsrMockLSST.__init__	(		self,
		**	kwargs )

Reimplemented from lsst.ip.isr.isrMock.IsrMock.

Reimplemented in lsst.ip.isr.isrMockLSST.BfKernelMockLSST, lsst.ip.isr.isrMockLSST.BiasMockLSST, lsst.ip.isr.isrMockLSST.CalibratedRawMockLSST, lsst.ip.isr.isrMockLSST.CrosstalkCoeffMockLSST, lsst.ip.isr.isrMockLSST.DarkMockLSST, lsst.ip.isr.isrMockLSST.DefectMockLSST, lsst.ip.isr.isrMockLSST.DeferredChargeMockLSST, lsst.ip.isr.isrMockLSST.FlatMockLSST, lsst.ip.isr.isrMockLSST.FringeMockLSST, lsst.ip.isr.isrMockLSST.LinearizerMockLSST, lsst.ip.isr.isrMockLSST.RawMockLSST, lsst.ip.isr.isrMockLSST.ReferenceMockLSST, lsst.ip.isr.isrMockLSST.TransmissionMockLSST, and lsst.ip.isr.isrMockLSST.TrimmedRawMockLSST.

Definition at line 226 of file isrMockLSST.py.

    def __init__(self, **kwargs):
        super().__init__(**kwargs)

        # Get kernel derived from imSim generated flats with BFE. The kernel
        # was used for Ops Rehearsal 3 for LSSTCam-type sensors
        # See https://rubinobs.atlassian.net/browse/DM-43059 for more details.
        self.bfKernel = np.array([[4.83499829e-01, 8.10171823e-01, 5.31096720e-01,
                                   3.54369868e-02, -8.44782871e-01, -1.64614462e+00,
                                  -3.83933101e+00, -5.60243416e+00, -6.51691578e+00,
                                  -5.60243416e+00, -3.83933101e+00, -1.64614462e+00,
                                  -8.44782871e-01, 3.54369868e-02, 5.31096720e-01,
                                   8.10171823e-01, 4.83499829e-01],
                                  [1.12382749e+00, 2.22609074e+00, 1.27877807e+00,
                                   4.55434098e-01, -1.76842385e+00, -1.90046460e+00,
                                  -8.10874526e+00, -1.20534899e+01, -1.48627948e+01,
                                  -1.20534899e+01, -8.10874526e+00, -1.90046460e+00,
                                  -1.76842385e+00, 4.55434098e-01, 1.27877807e+00,
                                   2.22609074e+00, 1.12382749e+00],
                                  [1.78571940e+00, 4.38918110e+00, 3.95098587e+00,
                                   3.70961649e-01, -3.48151981e+00, -9.61567736e+00,
                                  -1.78621172e+01, -2.32278872e+01, -2.31833727e+01,
                                  -2.32278872e+01, -1.78621172e+01, -9.61567736e+00,
                                  -3.48151981e+00, 3.70961649e-01, 3.95098587e+00,
                                   4.38918110e+00, 1.78571940e+00],
                                  [1.62986900e+00, 3.67851228e+00, 5.68645252e+00,
                                   2.15342566e-01, -8.89937202e+00, -1.44739813e+01,
                                  -2.98952660e+01, -4.37420817e+01, -4.83160958e+01,
                                  -4.37420817e+01, -2.98952660e+01, -1.44739813e+01,
                                  -8.89937202e+00, 2.15342566e-01, 5.68645252e+00,
                                   3.67851228e+00, 1.62986900e+00],
                                  [1.05524430e+00, 1.71917897e+00, 1.73105590e+00,
                                  -2.10088420e+00, -1.15118208e+01, -2.55007598e+01,
                                  -4.73056159e+01, -6.97257685e+01, -8.09264433e+01,
                                  -6.97257685e+01, -4.73056159e+01, -2.55007598e+01,
                                  -1.15118208e+01, -2.10088420e+00, 1.73105590e+00,
                                   1.71917897e+00, 1.05524430e+00],
                                  [8.71929228e-01, 5.41025574e-01, 9.47560771e-01,
                                  -5.75314708e-01, -7.46104027e+00, -4.42314481e+01,
                                  -9.54126971e+01, -1.61603201e+02, -2.07520692e+02,
                                  -1.61603201e+02, -9.54126971e+01, -4.42314481e+01,
                                  -7.46104027e+00, -5.75314708e-01, 9.47560771e-01,
                                   5.41025574e-01, 8.71929228e-01],
                                  [1.89144704e+00, 3.57543979e+00, -6.91419168e-02,
                                  -3.37950835e+00, -1.46695089e+01, -7.22850746e+01,
                                  -1.65563055e+02, -3.10820425e+02, -4.70026655e+02,
                                  -3.10820425e+02, -1.65563055e+02, -7.22850746e+01,
                                  -1.46695089e+01, -3.37950835e+00, -6.91419168e-02,
                                   3.57543979e+00, 1.89144704e+00],
                                  [3.11841913e+00, 7.84024994e+00, 1.88495248e+00,
                                  -7.69011009e+00, -2.71782400e+01, -1.04343326e+02,
                                  -2.47561370e+02, -5.32959841e+02, -1.16529012e+03,
                                  -5.32959841e+02, -2.47561370e+02, -1.04343326e+02,
                                  -2.71782400e+01, -7.69011009e+00, 1.88495248e+00,
                                   7.84024994e+00, 3.11841913e+00],
                                  [2.74197956e+00, 4.73107997e+00, -9.48352966e-01,
                                  -9.44822832e+00, -3.06477671e+01, -1.26788739e+02,
                                  -3.22828411e+02, -8.47943472e+02, -3.87702420e+03,
                                  -8.47943472e+02, -3.22828411e+02, -1.26788739e+02,
                                  -3.06477671e+01, -9.44822832e+00, -9.48352966e-01,
                                   4.73107997e+00, 2.74197956e+00],
                                  [3.11841913e+00, 7.84024994e+00, 1.88495248e+00,
                                  -7.69011009e+00, -2.71782400e+01, -1.04343326e+02,
                                  -2.47561370e+02, -5.32959841e+02, -1.16529012e+03,
                                  -5.32959841e+02, -2.47561370e+02, -1.04343326e+02,
                                  -2.71782400e+01, -7.69011009e+00, 1.88495248e+00,
                                  7.84024994e+00, 3.11841913e+00],
                                  [1.89144704e+00, 3.57543979e+00, -6.91419168e-02,
                                  -3.37950835e+00, -1.46695089e+01, -7.22850746e+01,
                                  -1.65563055e+02, -3.10820425e+02, -4.70026655e+02,
                                  -3.10820425e+02, -1.65563055e+02, -7.22850746e+01,
                                  -1.46695089e+01, -3.37950835e+00, -6.91419168e-02,
                                   3.57543979e+00, 1.89144704e+00],
                                  [8.71929228e-01, 5.41025574e-01, 9.47560771e-01,
                                  -5.75314708e-01, -7.46104027e+00, -4.42314481e+01,
                                  -9.54126971e+01, -1.61603201e+02, -2.07520692e+02,
                                  -1.61603201e+02, -9.54126971e+01, -4.42314481e+01,
                                  -7.46104027e+00, -5.75314708e-01, 9.47560771e-01,
                                   5.41025574e-01, 8.71929228e-01],
                                  [1.05524430e+00, 1.71917897e+00, 1.73105590e+00,
                                  -2.10088420e+00, -1.15118208e+01, -2.55007598e+01,
                                  -4.73056159e+01, -6.97257685e+01, -8.09264433e+01,
                                  -6.97257685e+01, -4.73056159e+01, -2.55007598e+01,
                                  -1.15118208e+01, -2.10088420e+00, 1.73105590e+00,
                                   1.71917897e+00, 1.05524430e+00],
                                  [1.62986900e+00, 3.67851228e+00, 5.68645252e+00,
                                   2.15342566e-01, -8.89937202e+00, -1.44739813e+01,
                                  -2.98952660e+01, -4.37420817e+01, -4.83160958e+01,
                                  -4.37420817e+01, -2.98952660e+01, -1.44739813e+01,
                                  -8.89937202e+00, 2.15342566e-01, 5.68645252e+00,
                                   3.67851228e+00, 1.62986900e+00],
                                  [1.78571940e+00, 4.38918110e+00, 3.95098587e+00,
                                   3.70961649e-01, -3.48151981e+00, -9.61567736e+00,
                                  -1.78621172e+01, -2.32278872e+01, -2.31833727e+01,
                                  -2.32278872e+01, -1.78621172e+01, -9.61567736e+00,
                                  -3.48151981e+00, 3.70961649e-01, 3.95098587e+00,
                                   4.38918110e+00, 1.78571940e+00],
                                  [1.12382749e+00, 2.22609074e+00, 1.27877807e+00,
                                   4.55434098e-01, -1.76842385e+00, -1.90046460e+00,
                                  -8.10874526e+00, -1.20534899e+01, -1.48627948e+01,
                                  -1.20534899e+01, -8.10874526e+00, -1.90046460e+00,
                                  -1.76842385e+00, 4.55434098e-01, 1.27877807e+00,
                                   2.22609074e+00, 1.12382749e+00],
                                  [4.83499829e-01, 8.10171823e-01, 5.31096720e-01,
                                   3.54369868e-02, -8.44782871e-01, -1.64614462+00,
                                  -3.83933101e+00, -5.60243416e+00, -6.51691578e+00,
                                  -5.60243416e+00, -3.83933101e+00, -1.64614462e+00,
                                  -8.44782871e-01, 3.54369868e-02, 5.31096720e-01,
                                   8.10171823e-01, 4.83499829e-01]]) * 1e-10

        # Spline trap coefficients and the ctiCalibDict are all taken from a
        # cti calibration measured from LSSTCam sensor R03_S12 during Run 5
        # EO testing. These are the coefficients for the spline trap model
        # used in the deferred charge calibration. The collection can be
        # found in /repo/ir2: u/abrought/13144/cti (processed 3/4/2024).
        self.splineTrapCoeffs = np.array([0.0, 28.1, 47.4, 56.4, 66.6, 78.6, 92.4, 109.4,
                                          129.0, 151.9, 179.4, 211.9, 250.5, 296.2, 350.0,
                                          413.5, 488.0, 576.0, 680.4, 753.0, 888.2, 1040.5,
                                          1254.1, 1478.9, 1747.0, 2055.7, 2416.9, 2855.2,
                                          3361.9, 3969.4, 4665.9, 5405.3, 6380.0, 7516.7,
                                          8875.9, 10488.6, 12681.9, 14974.2, 17257.6, 20366.5,
                                          24026.7, 28372.1, 33451.7, 39550.4, 46624.8, 55042.9,
                                          64862.7, 76503.1, 90265.6, 106384.2, 0.0, 0.0, 0.0,
                                          0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.1,
                                          0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.1, 0.0,
                                          0.1, 0.2, 0.6, 0.1, 0.0, 0.1, 0.0, 0.6, 0.3, 0.5, 0.8,
                                          0.8, 1.5, 2.0, 1.8, 2.4, 2.6, 3.7, 5.0, 6.4, 8.4, 10.9,
                                          14.5, 21.1, 28.9])

        self.ctiCalibDict = {'driftScale': {'C:0,0': 0.000127,
                                            'C:0,1': 0.000137,
                                            'C:0,2': 0.000138,
                                            'C:0,3': 0.000147,
                                            'C:1,0': 0.000147,
                                            'C:1,1': 0.000122,
                                            'C:1,2': 0.000123,
                                            'C:1,3': 0.000116},
                             'decayTime': {'C:0,0': 2.30,
                                           'C:0,1': 2.21,
                                           'C:0,2': 2.28,
                                           'C:0,3': 2.34,
                                           'C:1,0': 2.30,
                                           'C:1,1': 2.40,
                                           'C:1,2': 2.51,
                                           'C:1,3': 2.21},
                             'globalCti': {'C:0,0': 5.25e-07,
                                           'C:0,1': 5.38e-07,
                                           'C:0,2': 5.80e-07,
                                           'C:0,3': 5.91e-07,
                                           'C:1,0': 6.24e-07,
                                           'C:1,1': 5.72e-07,
                                           'C:1,2': 5.60e-07,
                                           'C:1,3': 4.40e-07},
                             'serialTraps': {'C:0,0': {'size': 20000.0,
                                                       'emissionTime': 0.4,
                                                       'pixel': 1,
                                                       'trap_type': 'spline',
                                                       'coeffs': self.splineTrapCoeffs},
                                             'C:0,1': {'size': 20000.0,
                                                       'emissionTime': 0.4,
                                                       'pixel': 1,
                                                       'trap_type': 'spline',
                                                       'coeffs': self.splineTrapCoeffs},
                                             'C:0,2': {'size': 20000.0,
                                                       'emissionTime': 0.4,
                                                       'pixel': 1,
                                                       'trap_type': 'spline',
                                                       'coeffs': self.splineTrapCoeffs},
                                             'C:0,3': {'size': 20000.0,
                                                       'emissionTime': 0.4,
                                                       'pixel': 1,
                                                       'trap_type': 'spline',
                                                       'coeffs': self.splineTrapCoeffs},
                                             'C:1,0': {'size': 20000.0,
                                                       'emissionTime': 0.4,
                                                       'pixel': 1,
                                                       'trap_type': 'spline',
                                                       'coeffs': self.splineTrapCoeffs},
                                             'C:1,1': {'size': 20000.0,
                                                       'emissionTime': 0.4,
                                                       'pixel': 1,
                                                       'trap_type': 'spline',
                                                       'coeffs': self.splineTrapCoeffs},
                                             'C:1,2': {'size': 20000.0,
                                                       'emissionTime': 0.4,
                                                       'pixel': 1,
                                                       'trap_type': 'spline',
                                                       'coeffs': self.splineTrapCoeffs},
                                             'C:1,3': {'size': 20000.0,
                                                       'emissionTime': 0.4,
                                                       'pixel': 1,
                                                       'trap_type': 'spline',
                                                       'coeffs': self.splineTrapCoeffs}}}

        self.deferredChargeCalib = self.makeDeferredChargeCalib()

        # Cross-talk coeffs are defined in the parent class.

        self.makeSubtask("assembleCcd")


Member Function Documentation

addBiasLevel()

lsst.ip.isr.isrMockLSST.IsrMockLSST.addBiasLevel	(		self,
			ampData,
			biasLevel )

Add bias level to an amplifier's image data.

Parameters
----------
ampData : `lsst.afw.image.ImageF`
    Amplifier image to operate on.
biasLevel : `float`
    Bias level to be added to the image.

Definition at line 766 of file isrMockLSST.py.

    def addBiasLevel(self, ampData, biasLevel):
        """Add bias level to an amplifier's image data.

        Parameters
        ----------
        ampData : `lsst.afw.image.ImageF`
            Amplifier image to operate on.
        biasLevel : `float`
            Bias level to be added to the image.
        """
        ampArr = ampData.array
        ampArr[:] = ampArr[:] + biasLevel


amplifierAddBrighterFatter()

lsst.ip.isr.isrMockLSST.IsrMockLSST.amplifierAddBrighterFatter	(		self,
			ampImageData,
			rng,
			bfStrength,
			nRecalc )

Add brighter fatter effect and/or diffusion to the image.
  Parameters
  ----------
  ampImageData : `lsst.afw.image.ImageF`
      Amplifier image to operate on.
  rng : `galsim.BaseDeviate`
      Random number generator.
  bfStrength : `float`
      Scaling parameter of the brighter fatter effect (nominally = 1)
  nRecalc: 'int'
      The number of electrons to accumulate before recalculating the
      distortion of the pixel shapes.

Definition at line 858 of file isrMockLSST.py.

    def amplifierAddBrighterFatter(self, ampImageData, rng, bfStrength, nRecalc):
        """Add brighter fatter effect and/or diffusion to the image.
          Parameters
          ----------
          ampImageData : `lsst.afw.image.ImageF`
              Amplifier image to operate on.
          rng : `galsim.BaseDeviate`
              Random number generator.
          bfStrength : `float`
              Scaling parameter of the brighter fatter effect (nominally = 1)
          nRecalc: 'int'
              The number of electrons to accumulate before recalculating the
              distortion of the pixel shapes.
        """

        incidentImage = galsim.Image(ampImageData.array, scale=1)
        measuredImage = galsim.ImageF(
            ampImageData.array.shape[1],
            ampImageData.array.shape[0],
            scale=1,
        )
        photons = galsim.PhotonArray.makeFromImage(incidentImage)

        sensorModel = galsim.SiliconSensor(
            strength=bfStrength,
            rng=rng,
            diffusion_factor=0.0,
            nrecalc=nRecalc,
        )

        totalFluxAdded = sensorModel.accumulate(photons, measuredImage)
        ampImageData.array = measuredImage.array

        return totalFluxAdded


amplifierAddDeferredCharge()

lsst.ip.isr.isrMockLSST.IsrMockLSST.amplifierAddDeferredCharge	(		self,
			exposure,
			amp )

Add serial CTI to the amplifier data.

Parameters
----------
exposure : `lsst.afw.image.ExposureF`
    The exposure object containing the amplifier
    to apply deferred charge to.
amp : `lsst.afw.image.Amplifier`
    The amplifier object (contains geometry info).

Definition at line 893 of file isrMockLSST.py.

    def amplifierAddDeferredCharge(self, exposure, amp):
        """Add serial CTI to the amplifier data.

        Parameters
        ----------
        exposure : `lsst.afw.image.ExposureF`
            The exposure object containing the amplifier
            to apply deferred charge to.
        amp : `lsst.afw.image.Amplifier`
            The amplifier object (contains geometry info).
        """
        # Get the amplifier's geometry parameters.
        # When adding deferred charge, we have already assured that
        # isTrimmed is False. Therefore we want to make sure that we
        # get the RawDataBBox.
        readoutCorner = amp.getReadoutCorner()
        prescanWidth = amp.getRawHorizontalPrescanBBox().getWidth()
        serialOverscanWidth = amp.getRawHorizontalOverscanBBox().getWidth()
        parallelOverscanWidth = amp.getRawVerticalOverscanBBox().getHeight()
        bboxFreeCharge = amp.getRawDataBBox()
        bboxFreeCharge = bboxFreeCharge.expandedTo(amp.getRawHorizontalOverscanBBox())
        bboxFreeCharge = bboxFreeCharge.expandedTo(amp.getRawHorizontalPrescanBBox())
        bboxFreeCharge = bboxFreeCharge.expandedTo(amp.getRawVerticalOverscanBBox())

        ampFreeChargeData = exposure.image[bboxFreeCharge]
        ampImageData = exposure.image[amp.getRawDataBBox()]

        # Get the deferred charge parameters for this amplifier.
        cti = self.deferredChargeCalib.globalCti[amp.getName()]
        traps = self.deferredChargeCalib.serialTraps[amp.getName()]
        driftScale = self.deferredChargeCalib.driftScale[amp.getName()]
        decayTime = self.deferredChargeCalib.decayTime[amp.getName()]

        # Create a fake amplifier object that contains some deferred charge
        # paramters.
        floatingOutputAmplifier = FloatingOutputAmplifier(
            gain=1.0,  # Everything is already in electrons.
            scale=driftScale,
            decay_time=decayTime,
            noise=0.0,
            offset=0.0,
        )

        def flipImage(arr, readoutCorner):
            # Flip an array so that the readout corner is in
            # the lower left.
            if readoutCorner == ReadoutCorner.LR:
                return np.fliplr(arr)
            elif readoutCorner == ReadoutCorner.UR:
                return np.fliplr(np.flipud(arr))
            elif readoutCorner == ReadoutCorner.UL:
                return np.flipud(arr)
            else:
                pass

            return arr

        # The algorithm expects that the readout corner is in
        # the lower left corner.  Flip it to be so:
        imageData = ampImageData.array
        imageData = flipImage(imageData, readoutCorner)

        # Simulate the amplifier.
        ampSim = SegmentSimulator(
            imarr=imageData,
            prescan_width=prescanWidth,
            output_amplifier=floatingOutputAmplifier,
            cti=cti,
            traps=traps,
        )

        # Simulate deferred charge!
        # Note that the readout() method uses the image region data and the
        # overscan dimensions provided as input parameters. It then creates
        # overscan nd adds it to the image data to create the raw image.
        result = ampSim.readout(
            serial_overscan_width=serialOverscanWidth,
            parallel_overscan_width=parallelOverscanWidth,
        )

        # Flip the image back to the original orientation.
        result = flipImage(result, readoutCorner)

        # Set the image with the deferred charge added.
        ampFreeChargeData.array[:, :] = result


amplifierAddNonlinearity()

lsst.ip.isr.isrMockLSST.IsrMockLSST.amplifierAddNonlinearity	(		self,
			ampData,
			centers,
			values,
			offset )

Add non-linearity to amplifier data.

Parameters
----------
ampData : `lsst.afw.image.ImageF`
    Amplifier image to operate on.
centers : `np.ndarray`
    Spline nodes.
values : `np.ndarray`
    Spline values.
offset : `float`
    Offset zero-point between linearizer (internal vs external).

Definition at line 1022 of file isrMockLSST.py.

    def amplifierAddNonlinearity(self, ampData, centers, values, offset):
        """Add non-linearity to amplifier data.

        Parameters
        ----------
        ampData : `lsst.afw.image.ImageF`
            Amplifier image to operate on.
        centers : `np.ndarray`
            Spline nodes.
        values : `np.ndarray`
            Spline values.
        offset : `float`
            Offset zero-point between linearizer (internal vs external).
        """
        # I'm not sure what to do about negative values...

        spl = afwMath.makeInterpolate(
            centers,
            values,
            afwMath.stringToInterpStyle("AKIMA_SPLINE"),
        )

        delta = np.asarray(spl.interpolate(ampData.array.ravel() - offset))

        ampData.array[:, :] += delta.reshape(ampData.array.shape)


amplifierAddXGradient()

lsst.ip.isr.isrMockLSST.IsrMockLSST.amplifierAddXGradient	(		self,
			ampData,
			start,
			end )

Add a x-axis linear gradient to an amplifier's image data.

 This method operates in the amplifier coordinate frame.

Parameters
----------
ampData : `lsst.afw.image.ImageF`
    Amplifier image to operate on.
start : `float`
    Start value of the gradient (at x=0).
end : `float`
    End value of the gradient (at x=xmax).

Definition at line 1103 of file isrMockLSST.py.

    def amplifierAddXGradient(self, ampData, start, end):
        """Add a x-axis linear gradient to an amplifier's image data.

         This method operates in the amplifier coordinate frame.

        Parameters
        ----------
        ampData : `lsst.afw.image.ImageF`
            Amplifier image to operate on.
        start : `float`
            Start value of the gradient (at x=0).
        end : `float`
            End value of the gradient (at x=xmax).
        """
        nPixX = ampData.getDimensions().getX()
        ampArr = ampData.array
        ampArr[:] = ampArr[:] + (np.interp(range(nPixX), (0, nPixX - 1), (start, end)).reshape(1, nPixX)
                                 + np.zeros(ampData.getDimensions()).transpose())


amplifierMultiplyFlat()

lsst.ip.isr.isrMockLSST.IsrMockLSST.amplifierMultiplyFlat	(		self,
			amp,
			ampData,
			fracDrop,
			u0 = 100.0,
			v0 = 100.0 )

Multiply an amplifier's image data by a flat-like pattern.

Parameters
----------
amp : `lsst.afw.ampInfo.AmpInfoRecord`
    Amplifier to operate on. Needed for amp<->exp coordinate
    transforms.
ampData : `lsst.afw.image.ImageF`
    Amplifier image to operate on.
fracDrop : `float`
    Fractional drop from center to edge of detector along x-axis.
u0 : `float`
    Peak location in detector coordinates.
v0 : `float`
    Peak location in detector coordinates.

Reimplemented from lsst.ip.isr.isrMock.IsrMock.

Definition at line 1048 of file isrMockLSST.py.

    def amplifierMultiplyFlat(self, amp, ampData, fracDrop, u0=100.0, v0=100.0):
        """Multiply an amplifier's image data by a flat-like pattern.

        Parameters
        ----------
        amp : `lsst.afw.ampInfo.AmpInfoRecord`
            Amplifier to operate on. Needed for amp<->exp coordinate
            transforms.
        ampData : `lsst.afw.image.ImageF`
            Amplifier image to operate on.
        fracDrop : `float`
            Fractional drop from center to edge of detector along x-axis.
        u0 : `float`
            Peak location in detector coordinates.
        v0 : `float`
            Peak location in detector coordinates.
        """
        if fracDrop >= 1.0:
            raise RuntimeError("Flat fractional drop cannot be greater than 1.0")

        sigma = u0 / np.sqrt(2.0 * fracDrop)

        for x in range(0, ampData.getDimensions().getX()):
            for y in range(0, ampData.getDimensions().getY()):
                (u, v) = self.localCoordToExpCoord(amp, x, y)
                f = np.exp(-0.5 * ((u - u0)**2 + (v - v0)**2) / sigma**2)
                ampData.array[y][x] = (ampData.array[y][x] * f)


applyGain()

lsst.ip.isr.isrMockLSST.IsrMockLSST.applyGain	(		self,
			ampData,
			gain )

Apply gain to the amplifier's data.
This method divides the data by the gain
because the mocks need to convert the data in electron to adu,
so it does the inverse operation to applyGains in isrFunctions.

Parameters
----------
ampData : `lsst.afw.image.ImageF`
    Amplifier image to operate on.
gain : `float`
    Gain value in electron/adu.

Definition at line 1076 of file isrMockLSST.py.

    def applyGain(self, ampData, gain):
        """Apply gain to the amplifier's data.
        This method divides the data by the gain
        because the mocks need to convert the data in electron to adu,
        so it does the inverse operation to applyGains in isrFunctions.

        Parameters
        ----------
        ampData : `lsst.afw.image.ImageF`
            Amplifier image to operate on.
        gain : `float`
            Gain value in electron/adu.
        """
        ampArr = ampData.array
        ampArr[:] = ampArr[:] / gain


getFullSerialOverscanBBox()

lsst.ip.isr.isrMockLSST.IsrMockLSST.getFullSerialOverscanBBox	(		self,
			amp )

Get the full serial overscan bounding box from an amplifier.

This includes the serial/parallel overscan region.

Parameters
----------
amp : `lsst.afw.ampInfo.AmpInfoRecord`
    Amplifier to operate on.

Returns
-------
bbox : `lsst.geom.Box2I`

Definition at line 1122 of file isrMockLSST.py.

    def getFullSerialOverscanBBox(self, amp):
        """Get the full serial overscan bounding box from an amplifier.

        This includes the serial/parallel overscan region.

        Parameters
        ----------
        amp : `lsst.afw.ampInfo.AmpInfoRecord`
            Amplifier to operate on.

        Returns
        -------
        bbox : `lsst.geom.Box2I`
        """
        # This only works for untrimmed data.
        bbox = amp.getRawDataBBox()

        parallelOverscanBBox = amp.getRawParallelOverscanBBox()
        grownImageBBox = bbox.expandedTo(parallelOverscanBBox)

        serialOverscanBBox = amp.getRawSerialOverscanBBox()
        # Extend the serial overscan bbox to include corners
        serialOverscanBBox = geom.Box2I(
            geom.Point2I(serialOverscanBBox.getMinX(),
                         grownImageBBox.getMinY()),
            geom.Extent2I(serialOverscanBBox.getWidth(),
                          grownImageBBox.getHeight()))

        return serialOverscanBBox



makeBfKernel()

lsst.ip.isr.isrMockLSST.IsrMockLSST.makeBfKernel

(

self

)

Generate a simple simulated brighter-fatter kernel.
Returns
-------
kernel : `lsst.ip.isr.BrighterFatterKernel`
    Simulated brighter-fatter kernel.

Reimplemented from lsst.ip.isr.isrMock.IsrMock.

Definition at line 816 of file isrMockLSST.py.

    def makeBfKernel(self):
        """Generate a simple simulated brighter-fatter kernel.
        Returns
        -------
        kernel : `lsst.ip.isr.BrighterFatterKernel`
            Simulated brighter-fatter kernel.
        """
        bfkArray = super().makeBfKernel()
        bfKernelObject = BrighterFatterKernel()
        bfKernelObject.level = 'AMP'
        bfKernelObject.gain = self.config.gainDict

        for amp in self.getExposure().getDetector():
            # Kernel must be in (y,x) orientation
            bfKernelObject.ampKernels[amp.getName()] = bfkArray.T

        return bfKernelObject


makeDefectList()

lsst.ip.isr.isrMockLSST.IsrMockLSST.makeDefectList	(		self,
			isTrimmed = True )

Generate a simple defect list.

Parameters
----------
isTrimmed : `bool`, optional
    Return defects in trimmed coordinates?

Returns
-------
defectList : `lsst.meas.algorithms.Defects`
    Simulated defect list

Reimplemented from lsst.ip.isr.isrMock.IsrMock.

Definition at line 779 of file isrMockLSST.py.

    def makeDefectList(self, isTrimmed=True):
        """Generate a simple defect list.

        Parameters
        ----------
        isTrimmed : `bool`, optional
            Return defects in trimmed coordinates?

        Returns
        -------
        defectList : `lsst.meas.algorithms.Defects`
            Simulated defect list
        """
        defectBoxesUntrimmed = [
            geom.Box2I(
                geom.Point2I(50, 118),
                geom.Extent2I(1, 51),
            ),
        ]

        if not isTrimmed:
            return Defects(defectBoxesUntrimmed)

        # If trimmed, we need to convert.
        tempExp = self.getExposure(isTrimmed=False)
        tempExp.image.array[:, :] = 0.0
        for bbox in defectBoxesUntrimmed:
            tempExp.image[bbox] = 1.0

        assembledExp = self.assembleCcd.assembleCcd(tempExp)

        # Use thresholding code to find defect footprints/boxes.
        threshold = afwDetection.createThreshold(1.0, "value", polarity=True)
        footprintSet = afwDetection.FootprintSet(assembledExp.image, threshold)

        return Defects.fromFootprintList(footprintSet.getFootprints())


makeDeferredChargeCalib()

lsst.ip.isr.isrMockLSST.IsrMockLSST.makeDeferredChargeCalib

(

self

)

Generate a CTI calibration.

Returns
-------
cti : `lsst.ip.isr.deferredCharge.DeferredChargeCalib`
    Simulated deferred charge calibration.

Reimplemented from lsst.ip.isr.isrMock.IsrMock.

Definition at line 834 of file isrMockLSST.py.

    def makeDeferredChargeCalib(self):
        """Generate a CTI calibration.

        Returns
        -------
        cti : `lsst.ip.isr.deferredCharge.DeferredChargeCalib`
            Simulated deferred charge calibration.
        """

        metadataDict = {'metadata': PropertyList()}
        metadataDict['metadata'].add(name="OBSTYPE", value="CTI")
        metadataDict['metadata'].add(name="CALIBCLS",
                                     value="lsst.ip.isr.deferredCharge.DeferredChargeCalib")
        # This should always be True for the new ISR task
        # because gains have already been applied and the
        # mock and the correction are always in electrons.
        # We will pass where necessary gains of 1.0.
        metadataDict['metadata'].add("USEGAINS", value=True)
        self.ctiCalibDict = {**metadataDict, **self.ctiCalibDict}
        deferredChargeCalib = DeferredChargeCalib(useGains=True)
        self.cti = deferredChargeCalib.fromDict(self.ctiCalibDict)

        return self.cti


makeImage()

lsst.ip.isr.isrMockLSST.IsrMockLSST.makeImage

(

self

)

Generate a simulated ISR LSST image.

Returns
-------
exposure : `lsst.afw.image.Exposure` or `dict`
    Simulated ISR image data.

Notes
-----
This method constructs a "raw" data image.

Reimplemented from lsst.ip.isr.isrMock.IsrMock.

Definition at line 451 of file isrMockLSST.py.

    def makeImage(self):
        """Generate a simulated ISR LSST image.

        Returns
        -------
        exposure : `lsst.afw.image.Exposure` or `dict`
            Simulated ISR image data.

        Notes
        -----
        This method constructs a "raw" data image.
        """
        exposure = self.getExposure()

        # Set up random number generators for consistency of components,
        # no matter the group that are configured.
        rngSky = np.random.RandomState(seed=self.config.rngSeed + 1)
        rngDark = np.random.RandomState(seed=self.config.rngSeed + 2)
        rng2DBias = np.random.RandomState(seed=self.config.rngSeed + 3)
        rngOverscan = np.random.RandomState(seed=self.config.rngSeed + 4)
        rngReadNoise = np.random.RandomState(seed=self.config.rngSeed + 5)
        rngBrighterFatter = galsim.BaseDeviate(self.config.rngSeed + 6)

        # Create the linearizer if we will need it.
        if self.config.doAddHighSignalNonlinearity:
            linearizer = LinearizerMockLSST().run()

        # We introduce effects as they happen from a source to the signal,
        # so the effects go from electron to adu.
        # The ISR steps will then correct these effects in the reverse order.
        for idx, amp in enumerate(exposure.getDetector()):
            # Get image bbox and data
            bbox = None
            if self.config.isTrimmed:
                bbox = amp.getBBox()
                bboxFull = bbox
            else:
                bbox = amp.getRawDataBBox()
                bboxFull = amp.getRawBBox()

            # This is the image data (excluding pre/overscans).
            ampImageData = exposure.image[bbox]
            # This is the full data (including pre/overscans if untrimmed).
            ampFullData = exposure.image[bboxFull]

            # Astrophysical signals are all in electron (e-).
            # These are only applied to the imaging portion of the
            # amplifier (ampImageData)

            if self.config.doAddSky:
                # The sky effects are in electron.
                self.amplifierAddNoise(
                    ampImageData,
                    self.config.skyLevel,
                    np.sqrt(self.config.skyLevel),
                    rng=rngSky,
                )

            if self.config.doAddSource:
                for sourceAmp, sourceFlux, sourceX, sourceY in zip(self.config.sourceAmp,
                                                                   self.config.sourceFlux,
                                                                   self.config.sourceX,
                                                                   self.config.sourceY):
                    if idx == sourceAmp:
                        # The source flux is in electron.
                        self.amplifierAddSource(ampImageData, sourceFlux, sourceX, sourceY)

            if self.config.doAddFringe:
                # Fringes are added in electron.
                self.amplifierAddFringe(amp,
                                        ampImageData,
                                        np.array(self.config.fringeScale),
                                        x0=np.array(self.config.fringeX0),
                                        y0=np.array(self.config.fringeY0))

            if self.config.doAddFlat:
                if self.config.calibMode:
                    # In case we are making a combined flat,
                    # add a non-zero signal so the mock flat can be multiplied
                    self.amplifierAddNoise(ampImageData, 1.0, 0.0)
                # Multiply each amplifier by a Gaussian centered on u0 and v0
                u0 = exposure.getDetector().getBBox().getDimensions().getX()/2.
                v0 = exposure.getDetector().getBBox().getDimensions().getY()/2.
                self.amplifierMultiplyFlat(amp, ampImageData, self.config.flatDrop, u0=u0, v0=v0)

        # On-chip electronic effects.

        # 1. Add bright defect(s).
        if self.config.doAddBrightDefects:
            defectList = self.makeDefectList(isTrimmed=self.config.isTrimmed)

            for defect in defectList:
                exposure.image[defect.getBBox()] = self.config.brightDefectLevel

        for idx, amp in enumerate(exposure.getDetector()):
            # Get image bbox and data
            bbox = None
            if self.config.isTrimmed:
                bbox = amp.getBBox()
                bboxFull = bbox
            else:
                bbox = amp.getRawDataBBox()
                bboxFull = amp.getRawBBox()

            # This is the image data (excluding pre/overscans).
            ampImageData = exposure.image[bbox]
            # This is the full data (including pre/overscans if untrimmed).
            ampFullData = exposure.image[bboxFull]

            # 2. Add dark current (electron) to imaging portion of the amp.
            if self.config.doAddDark or self.config.doAddDarkNoiseOnly:
                if self.config.doAddDarkNoiseOnly:
                    darkLevel = 0.0
                else:
                    darkLevel = self.config.darkRate * self.config.darkTime
                if self.config.calibMode:
                    darkNoise = 0.0
                else:
                    darkNoise = np.sqrt(self.config.darkRate * self.config.darkTime)

                self.amplifierAddNoise(ampImageData, darkLevel, darkNoise, rng=rngDark)

            # 3. Add BF effect (electron) to imaging portion of the amp.
            if self.config.doAddBrighterFatter is True:
                self.amplifierAddBrighterFatter(
                    ampImageData,
                    rngBrighterFatter,
                    self.config.bfStrength,
                    self.config.nRecalc,
                )

            # 4. Add serial CTI (electron) to amplifier (imaging + overscan).
            if self.config.doAddDeferredCharge:
                # Get the free charge area for the amplifier.
                self.amplifierAddDeferredCharge(exposure, amp)

            # 5. Add 2D bias residual (electron) to imaging portion of the amp.
            if self.config.doAdd2DBias:
                # For now we use an unstructured noise field to add some
                # consistent 2D bias residual that can be subtracted. In
                # the future this can be made into a warm corner (for example).
                self.amplifierAddNoise(
                    ampImageData,
                    0.0,
                    self.config.noise2DBias,
                    rng=rng2DBias,
                )

            # 6. Add clock-injected offset (electron) to amplifer
            #    (imaging + overscan).
            # This is just an offset that will be crosstalked and modified by
            # the gain, and does not have a noise associated with it.
            if self.config.doAddClockInjectedOffset:
                self.amplifierAddNoise(
                    ampFullData,
                    self.config.clockInjectedOffsetLevel,
                    0.0,
                )

            # 7./8. Add serial and parallel overscan slopes (electron)
            #       (imaging + overscan)
            if (self.config.doAddParallelOverscanRamp or self.config.doAddSerialOverscanRamp) and \
               not self.config.isTrimmed:

                if self.config.doAddParallelOverscanRamp:
                    # Apply gradient along the X axis.
                    self.amplifierAddXGradient(ampFullData, -1.0 * self.config.overscanScale,
                                               1.0 * self.config.overscanScale)

                if self.config.doAddSerialOverscanRamp:
                    # Apply the gradient along the Y axis.
                    self.amplifierAddYGradient(ampFullData, -1.0 * self.config.overscanScale,
                                               1.0 * self.config.overscanScale)

            # 9. Add non-linearity (electron) to amplifier
            #    (imaging + overscan).
            if self.config.doAddHighSignalNonlinearity:
                # The linearizer coefficients come from makeLinearizer().
                if linearizer.linearityType[amp.getName()] != "Spline":
                    raise RuntimeError("IsrMockLSST only supports spline non-linearity.")

                coeffs = linearizer.linearityCoeffs[amp.getName()]
                centers, values = np.split(coeffs, 2)

                # This is an application of high signal non-linearity, so we
                # set the lower values to 0.0 (this cut is arbitrary).
                values[centers < self.config.highSignalNonlinearityThreshold] = 0.0

                # The linearizer is units of adu, so convert to electron
                values *= self.config.gainDict[amp.getName()]

                # Note that the linearity spline is in "overscan subtracted"
                # units so needs to be applied without the clock-injected
                # offset.
                self.amplifierAddNonlinearity(
                    ampFullData,
                    centers,
                    values,
                    self.config.clockInjectedOffsetLevel if self.config.doAddClockInjectedOffset else 0.0,
                )

            # 10. Add read noise (electron) to the amplifier
            #     (imaging + overscan).
            #     Unsure if this should be before or after crosstalk.
            #     Probably some of both; hopefully doesn't matter.
            if not self.config.calibMode:
                # Add read noise to the imaging region.
                self.amplifierAddNoise(
                    ampImageData,
                    0.0,
                    self.config.readNoise,
                    rng=rngReadNoise,
                )

                # If not trimmed, add to the overscan regions.
                if not self.config.isTrimmed:
                    parallelOverscanBBox = amp.getRawParallelOverscanBBox()
                    parallelOverscanData = exposure.image[parallelOverscanBBox]

                    serialOverscanBBox = self.getFullSerialOverscanBBox(amp)
                    serialOverscanData = exposure.image[serialOverscanBBox]

                    # Add read noise of mean 0
                    # to the parallel and serial overscan regions.
                    self.amplifierAddNoise(
                        parallelOverscanData,
                        0.0,
                        self.config.readNoise,
                        rng=rngOverscan,
                    )
                    self.amplifierAddNoise(
                        serialOverscanData,
                        0.0,
                        self.config.readNoise,
                        rng=rngOverscan,
                    )

        # 7b. Add bad column to the parallel overscan region.
        if self.config.doAddBadParallelOverscanColumn and not self.config.isTrimmed:
            # We want to place this right above the defect, to simulate
            # bleeding into the parallel overscan region.
            amp = exposure.getDetector()[2]
            parBBox = amp.getRawParallelOverscanBBox()
            bboxBad = geom.Box2I(
                corner=geom.Point2I(50, parBBox.getMinY()),
                dimensions=geom.Extent2I(1, parBBox.getHeight()),
            )
            exposure[bboxBad].image.array[:, :] = self.config.badParallelOverscanColumnLevel

            if self.config.doAddBadParallelOverscanColumnNeighbors:
                for neighbor in [49, 51]:
                    bboxBad = geom.Box2I(
                        corner=geom.Point2I(neighbor, parBBox.getMinY()),
                        dimensions=geom.Extent2I(1, parBBox.getHeight()),
                    )
                    exposure[bboxBad].image.array[:, :] += self.config.badParallelOverscanColumnNeighborsLevel

        # 11. Add crosstalk (electron) to all the amplifiers
        #     (imaging + overscan).
        if self.config.doAddCrosstalk:
            ctCalib = CrosstalkCalib()
            exposureClean = exposure.clone()
            for idxS, ampS in enumerate(exposure.getDetector()):
                for idxT, ampT in enumerate(exposure.getDetector()):
                    ampDataTarget = exposure.image[ampT.getBBox() if self.config.isTrimmed
                                                   else ampT.getRawBBox()]
                    ampDataSource = ctCalib.extractAmp(exposureClean.image, ampS, ampT,
                                                       isTrimmed=self.config.isTrimmed,
                                                       fullAmplifier=True)
                    self.amplifierAddCT(ampDataSource, ampDataTarget, self.crosstalkCoeffs[idxS][idxT])

        for amp in exposure.getDetector():
            # Get image bbox and data (again).
            bbox = None
            if self.config.isTrimmed:
                bbox = amp.getBBox()
                bboxFull = bbox
            else:
                bbox = amp.getRawDataBBox()
                bboxFull = amp.getRawBBox()

            # This is the image data (excluding pre/overscans).
            ampImageData = exposure.image[bbox]
            # This is the full data (including pre/overscans if untrimmed).
            ampFullData = exposure.image[bboxFull]

            # 12. Gain un-normalize (from electron to floating point adu)
            if self.config.doApplyGain:
                gain = self.config.gainDict.get(amp.getName(), self.config.gain)
                self.applyGain(ampFullData, gain)

            # 13. Add overall bias level (adu) to the amplifier
            #    (imaging + overscan)
            if self.config.doAddBias:
                self.addBiasLevel(ampFullData, self.config.biasLevel)

            # 14. Round/Truncate to integers (adu)
            if self.config.doRoundAdu:
                self.roundADU(ampFullData)

        # Add units metadata to calibrations.
        if self.config.calibMode:
            if self.config.doApplyGain:
                exposure.metadata["LSST ISR UNITS"] = "adu"
            else:
                exposure.metadata["LSST ISR UNITS"] = "electron"

        if self.config.doGenerateAmpDict:
            expDict = dict()
            for amp in exposure.getDetector():
                expDict[amp.getName()] = exposure
            return expDict
        else:
            return exposure


makeLinearizer()

lsst.ip.isr.isrMockLSST.IsrMockLSST.makeLinearizer

(

self

)

Definition at line 979 of file isrMockLSST.py.

    def makeLinearizer(self):
        # docstring inherited.

        # The linearizer has units of adu.
        nNodes = 10
        # Set this to just above the mock saturation (adu)
        maxADU = 101_000
        nonLinSplineNodes = np.linspace(0, maxADU, nNodes)
        # These values come from cp_pipe/tests/test_linearity.py and
        # are based on a test fit to LSSTCam data, run 7193D, detector 22,
        # amp C00.
        nonLinSplineValues = np.array(
            [0.0, -8.87, 1.46, 1.69, -6.92, -68.23, -78.01, -11.56, 80.26, 185.01]
        )

        if self.config.doAddHighSignalNonlinearity and not self.config.doAddLowSignalNonlinearity:
            nonLinSplineValues[nonLinSplineNodes < self.config.highSignalNonlinearityThreshold] = 0.0
        elif self.config.doAddLowSignalNonlinearity:
            raise NotImplementedError("Low signal non-linearity is not implemented.")

        exp = self.getExposure()
        detector = exp.getDetector()

        linearizer = Linearizer(detector=detector)
        linearizer.updateMetadataFromExposures([exp])

        # We need to set override by hand because we are constructing a
        # linearizer manually and not from a serialized object.
        linearizer.override = True
        linearizer.hasLinearity = True
        linearizer.validate()
        linearizer.updateMetadata(camera=self.getCamera(), detector=detector, filterName='NONE')
        linearizer.updateMetadata(setDate=True, setCalibId=True)

        for amp in detector:
            ampName = amp.getName()
            linearizer.linearityType[ampName] = "Spline"
            linearizer.linearityCoeffs[ampName] = np.concatenate([nonLinSplineNodes, nonLinSplineValues])
            # We need to specify the raw bbox here.
            linearizer.linearityBBox[ampName] = amp.getRawBBox()

        return linearizer


roundADU()

lsst.ip.isr.isrMockLSST.IsrMockLSST.roundADU	(		self,
			ampData )

Round adu to nearest integer.

Parameters
----------
ampData : `lsst.afw.image.ImageF`
    Amplifier image to operate on.

Definition at line 1092 of file isrMockLSST.py.

    def roundADU(self, ampData):
        """Round adu to nearest integer.

        Parameters
        ----------
        ampData : `lsst.afw.image.ImageF`
            Amplifier image to operate on.
        """
        ampArr = ampData.array
        ampArr[:] = np.around(ampArr)


run()

lsst.ip.isr.isrMockLSST.IsrMockLSST.run

(

self

)

Generate a mock ISR product following LSSTCam ISR, and return it.

Returns
-------
image : `lsst.afw.image.Exposure`
    Simulated ISR image with signals added.
dataProduct :
    Simulated ISR data products.
None :
    Returned if no valid configuration was found.

Raises
------
RuntimeError
    Raised if both doGenerateImage and doGenerateData are specified.

Reimplemented from lsst.ip.isr.isrMock.IsrMock.

Definition at line 425 of file isrMockLSST.py.

    def run(self):
        """Generate a mock ISR product following LSSTCam ISR, and return it.

        Returns
        -------
        image : `lsst.afw.image.Exposure`
            Simulated ISR image with signals added.
        dataProduct :
            Simulated ISR data products.
        None :
            Returned if no valid configuration was found.

        Raises
        ------
        RuntimeError
            Raised if both doGenerateImage and doGenerateData are specified.
        """
        if self.config.doGenerateImage and self.config.doGenerateData:
            raise RuntimeError("Only one of doGenerateImage and doGenerateData may be specified.")
        elif self.config.doGenerateImage:
            return self.makeImage()
        elif self.config.doGenerateData:
            return self.makeData()
        else:
            return None


Member Data Documentation

_DefaultName

str lsst.ip.isr.isrMockLSST.IsrMockLSST._DefaultName = "isrMockLSST"

staticprotected

Definition at line 224 of file isrMockLSST.py.

bfKernel

lsst.ip.isr.isrMockLSST.IsrMockLSST.bfKernel

Definition at line 232 of file isrMockLSST.py.

ConfigClass

lsst.ip.isr.isrMockLSST.IsrMockLSST.ConfigClass = IsrMockLSSTConfig

static

Definition at line 223 of file isrMockLSST.py.

cti

lsst.ip.isr.isrMockLSST.IsrMockLSST.cti

Definition at line 854 of file isrMockLSST.py.

ctiCalibDict

lsst.ip.isr.isrMockLSST.IsrMockLSST.ctiCalibDict

Definition at line 354 of file isrMockLSST.py.

deferredChargeCalib

lsst.ip.isr.isrMockLSST.IsrMockLSST.deferredChargeCalib

Definition at line 419 of file isrMockLSST.py.

splineTrapCoeffs

lsst.ip.isr.isrMockLSST.IsrMockLSST.splineTrapCoeffs

Definition at line 340 of file isrMockLSST.py.

---

The documentation for this class was generated from the following file:

• /j/snowflake/release/lsstsw/stack/lsst-scipipe-9.0.0/Linux64/ip_isr/gc22bb204ba+78ba4d1ce1/python/lsst/ip/isr/isrMockLSST.py
