lsst::jointcal::Point Class Reference

A point in a plane. More...

#include <Point.h>

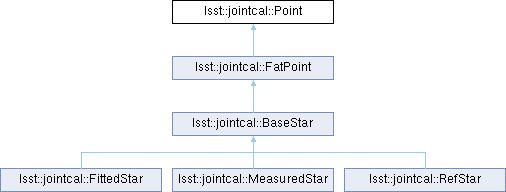

Inheritance diagram for lsst::jointcal::Point:

Public Member Functions
virtual	~Point ()=default
	Point ()
	Point (double xx, double yy)
double	Distance (const Point &other) const
double	computeDist2 (const Point &other) const
	distance squared to other
Point	operator+ (const Point &Right) const
	Sum.
Point	operator- (const Point &Right) const
	Difference.
virtual void	print (std::ostream &s=std::cout) const

Public Attributes
double	x
	coordinate
double	y

Friends
std::ostream &	operator<< (std::ostream &stream, const Point &point)

Detailed Description

A point in a plane.

Definition at line 37 of file Point.h.

Constructor & Destructor Documentation

~Point()

virtual lsst::jointcal::Point::~Point ( )

virtualdefault

Point() [1/2]

lsst::jointcal::Point::Point ( )

inline

• contructor

Definition at line 45 of file Point.h.

: x(0), y(0){};

Point() [2/2]

lsst::jointcal::Point::Point ( double xx, double yy )

inline

• contructor

Definition at line 48 of file Point.h.

: x(xx), y(yy){};

Member Function Documentation

computeDist2()

double lsst::jointcal::Point::computeDist2 ( const Point & other ) const

inline

distance squared to other

Definition at line 56 of file Point.h.

                                                  {
        return ((x - other.x) * (x - other.x) + (y - other.y) * (y - other.y));
    };

Distance()

double lsst::jointcal::Point::Distance ( const Point & other ) const

inline

Definition at line 51 of file Point.h.

                                              {
        return sqrt((x - other.x) * (x - other.x) + (y - other.y) * (y - other.y));
    };

operator+()

Point lsst::jointcal::Point::operator+ ( const Point & Right ) const

inline

Sum.

Definition at line 61 of file Point.h.

{ return Point(x + Right.x, y + Right.y); }

operator-()

Point lsst::jointcal::Point::operator- ( const Point & Right ) const

inline

Difference.

Definition at line 64 of file Point.h.

{ return Point(x - Right.x, y - Right.y); }

print()

virtual void lsst::jointcal::Point::print ( std::ostream & s = std::cout ) const

inlinevirtual

Reimplemented in lsst::jointcal::BaseStar, lsst::jointcal::FatPoint, lsst::jointcal::FittedStar, and lsst::jointcal::MeasuredStar.

Definition at line 66 of file Point.h.

                                                      {
        s << std::setprecision(15) << "x: " << x << " y: " << y;
    }

Friends And Related Symbol Documentation

operator<<

std::ostream & operator<< ( std::ostream & stream, const Point & point )

friend

Definition at line 70 of file Point.h.

                                                                          {
        point.print(stream);
        return stream;
    }

Member Data Documentation

x

double lsst::jointcal::Point::x

coordinate

Definition at line 42 of file Point.h.

y

double lsst::jointcal::Point::y

Definition at line 42 of file Point.h.

---

The documentation for this class was generated from the following file:

• /j/snowflake/release/lsstsw/stack/lsst-scipipe-10.0.0/Linux64/jointcal/gde0f65d7ad+53d424b1ae/include/lsst/jointcal/Point.h
