lsst.afw.geom::ExtentBase< T, N > Class Template Reference

#include <Extent.h>

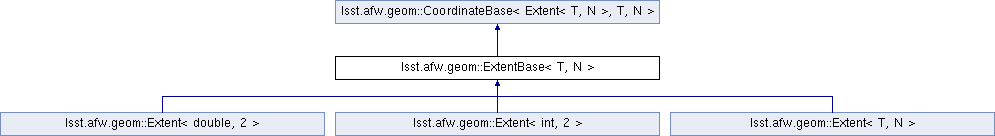

Inheritance diagram for lsst.afw.geom::ExtentBase< T, N >:

Public Member Functions
T	computeSquaredNorm () const
	Return the squared L2 norm of the Extent (x^2 + y^2 + ...). More...
T	computeNorm () const
	Return the L2 norm of the Extent (sqrt(x^2 + y^2 + ...)). More...
bool	operator== (Extent< T, N > const &other) const
	Standard equality comparison. More...
bool	operator!= (Extent< T, N > const &other) const
	Standard inequality comparison. More...
Point< T, N >	asPoint () const
	Cast this object to an Extent of the same numeric type and dimensionality. More...
std::string	toString () const
Named comparison functions
Note that these return CoordinateExpr, not bool. Unlike most arithmetic and assignment operators, scalar interoperability is provided for comparisons; expressions like * if (all(extent.gt(0))) ... * are both ubiquitous and easy to interpret.
CoordinateExpr< N >	eq (Extent< T, N > const &other) const
CoordinateExpr< N >	ne (Extent< T, N > const &other) const
CoordinateExpr< N >	lt (Extent< T, N > const &other) const
CoordinateExpr< N >	le (Extent< T, N > const &other) const
CoordinateExpr< N >	gt (Extent< T, N > const &other) const
CoordinateExpr< N >	ge (Extent< T, N > const &other) const
CoordinateExpr< N >	eq (T scalar) const
CoordinateExpr< N >	ne (T scalar) const
CoordinateExpr< N >	lt (T scalar) const
CoordinateExpr< N >	le (T scalar) const
CoordinateExpr< N >	gt (T scalar) const
CoordinateExpr< N >	ge (T scalar) const
Additive arithmetic operators
No scalar interoperability is provided for Extent additive arithmetic operations.
Point< T, N >	operator+ (Point< T, N > const &other) const
Extent< T, N >	operator+ (Extent< T, N > const &other) const
Extent< T, N >	operator- (Extent< T, N > const &other) const
Extent< T, N > &	operator+= (Extent< T, N > const &other)
Extent< T, N > &	operator-= (Extent< T, N > const &other)
Extent< T, N >	operator+ () const
Extent< T, N >	operator- () const
Multiplicative arithmetic operators
As usual with matrices and vectors, Extent can be multiplied or divided by a scalar.
Extent< T, N >	operator* (T scalar) const
Extent< T, N > &	operator*= (T scalar)
Extent< T, N >	operator/ (T scalar) const
Extent< T, N > &	operator/= (T scalar)
Public Member Functions inherited from lsst.afw.geom::CoordinateBase< Extent< T, N >, T, N >
T &	operator[] (int n)
T const &	operator[] (int n) const
T &	coeffRef (int n)
T const &	coeffRef (int n) const
EigenVector const &	asEigen () const
	Return a fixed-size Eigen representation of the coordinate object. More...

Protected Member Functions
	ExtentBase (T val=static_cast< T >(0))
	Construct an Extent<T,N> with all elements set to the same scalar value. More...
template<typename Vector >
	ExtentBase (Eigen::MatrixBase< Vector > const &vector)
	Construct an Extent from an Eigen vector. More...
Protected Member Functions inherited from lsst.afw.geom::CoordinateBase< Extent< T, N >, T, N >
	CoordinateBase (T val=static_cast< T >(0))
	Initialize all elements to a scalar. More...
	CoordinateBase (Eigen::MatrixBase< Vector > const &vector)
	Initialize all elements from an N-d Eigen vector. More...
void	_swap (CoordinateBase &other)

Private Types
typedef CoordinateBase< Extent < T, N >, T, N >	Super

Additional Inherited Members
Public Types inherited from lsst.afw.geom::CoordinateBase< Extent< T, N >, T, N >
typedef T	Element
typedef Eigen::Matrix< T, N, 1, Eigen::DontAlign >	EigenVector
Static Public Attributes inherited from lsst.afw.geom::CoordinateBase< Extent< T, N >, T, N >
static int const	dimensions
Protected Attributes inherited from lsst.afw.geom::CoordinateBase< Extent< T, N >, T, N >
EigenVector	_vector

Detailed Description

template<typename T, int N>
class lsst.afw.geom::ExtentBase< T, N >

Definition at line 64 of file Extent.h.

Member Typedef Documentation

template<typename T, int N>

typedef CoordinateBase<Extent<T,N>,T,N> lsst.afw.geom::ExtentBase< T, N >::Super

private

Definition at line 65 of file Extent.h.

Constructor & Destructor Documentation

template<typename T, int N>

lsst.afw.geom::ExtentBase< T, N >::ExtentBase ( T  val = static_cast<T>(0) )

inlineexplicitprotected

Construct an Extent<T,N> with all elements set to the same scalar value.

Definition at line 171 of file Extent.h.

: Super(val) {}

template<typename T, int N>

template<typename Vector >

lsst.afw.geom::ExtentBase< T, N >::ExtentBase ( Eigen::MatrixBase< Vector > const &  vector )

inlineexplicitprotected

Construct an Extent from an Eigen vector.

Definition at line 175 of file Extent.h.

: Super(vector) {}

Member Function Documentation

template<typename T, int N>

Point<T,N> lsst.afw.geom::ExtentBase< T, N >::asPoint

(

)

const

Cast this object to an Extent of the same numeric type and dimensionality.

template<typename T, int N>

T lsst.afw.geom::ExtentBase< T, N >::computeNorm ( ) const

inline

Return the L2 norm of the Extent (sqrt(x^2 + y^2 + ...)).

Definition at line 72 of file Extent.h.

{ return detail::computeExtentNorm(static_cast<Extent<T,N> const &>(*this)); }

template<typename T, int N>

T lsst.afw.geom::ExtentBase< T, N >::computeSquaredNorm ( ) const

inline

Return the squared L2 norm of the Extent (x^2 + y^2 + ...).

Definition at line 69 of file Extent.h.

{ return this->asEigen().squaredNorm(); }

template<typename T, int N>

CoordinateExpr<N> lsst.afw.geom::ExtentBase< T, N >::eq

(

Extent< T, N > const &

other

)

const

template<typename T, int N>

CoordinateExpr<N> lsst.afw.geom::ExtentBase< T, N >::eq ( T  scalar ) const

inline

Definition at line 107 of file Extent.h.

{ return this->eq(Extent<T,N>(scalar)); }

template<typename T, int N>

CoordinateExpr<N> lsst.afw.geom::ExtentBase< T, N >::ge

(

Extent< T, N > const &

other

)

const

template<typename T, int N>

CoordinateExpr<N> lsst.afw.geom::ExtentBase< T, N >::ge ( T  scalar ) const

inline

Definition at line 112 of file Extent.h.

{ return this->ge(Extent<T,N>(scalar)); }

template<typename T, int N>

CoordinateExpr<N> lsst.afw.geom::ExtentBase< T, N >::gt

(

Extent< T, N > const &

other

)

const

template<typename T, int N>

CoordinateExpr<N> lsst.afw.geom::ExtentBase< T, N >::gt ( T  scalar ) const

inline

Definition at line 111 of file Extent.h.

{ return this->gt(Extent<T,N>(scalar)); }

template<typename T, int N>

CoordinateExpr<N> lsst.afw.geom::ExtentBase< T, N >::le

(

Extent< T, N > const &

other

)

const

template<typename T, int N>

CoordinateExpr<N> lsst.afw.geom::ExtentBase< T, N >::le ( T  scalar ) const

inline

Definition at line 110 of file Extent.h.

{ return this->le(Extent<T,N>(scalar)); }

template<typename T, int N>

CoordinateExpr<N> lsst.afw.geom::ExtentBase< T, N >::lt

(

Extent< T, N > const &

other

)

const

template<typename T, int N>

CoordinateExpr<N> lsst.afw.geom::ExtentBase< T, N >::lt ( T  scalar ) const

inline

Definition at line 109 of file Extent.h.

{ return this->lt(Extent<T,N>(scalar)); }

template<typename T, int N>

CoordinateExpr<N> lsst.afw.geom::ExtentBase< T, N >::ne

(

Extent< T, N > const &

other

)

const

template<typename T, int N>

CoordinateExpr<N> lsst.afw.geom::ExtentBase< T, N >::ne ( T  scalar ) const

inline

Definition at line 108 of file Extent.h.

{ return this->ne(Extent<T,N>(scalar)); }

template<typename T, int N>

bool lsst.afw.geom::ExtentBase< T, N >::operator!= ( Extent< T, N > const &  other ) const

inline

Standard inequality comparison.

Returns true iff any(this->ne(other));

Definition at line 86 of file Extent.h.

{ return any(this->ne(other)); }

template<typename T, int N>

Extent<T,N> lsst.afw.geom::ExtentBase< T, N >::operator* ( T  scalar ) const

inline

Definition at line 146 of file Extent.h.

{ return Extent<T,N>(this->_vector * scalar); }

template<typename T, int N>

Extent<T,N>& lsst.afw.geom::ExtentBase< T, N >::operator*= ( T  scalar )

inline

Definition at line 147 of file Extent.h.

{ this->_vector *= scalar; return static_cast<Extent<T,N>&>(*this); }

template<typename T, int N>

Point<T,N> lsst.afw.geom::ExtentBase< T, N >::operator+

(

Point< T, N > const &

other

)

const

template<typename T, int N>

Extent<T,N> lsst.afw.geom::ExtentBase< T, N >::operator+ ( Extent< T, N > const &  other ) const

inline

Definition at line 122 of file Extent.h.

                                                           {
        return Extent<T,N>(this->_vector + other._vector);
    }

template<typename T, int N>

Extent<T,N> lsst.afw.geom::ExtentBase< T, N >::operator+ ( ) const

inline

Definition at line 136 of file Extent.h.

{ return static_cast<Extent<T,N> const &>(*this); }

template<typename T, int N>

Extent<T,N>& lsst.afw.geom::ExtentBase< T, N >::operator+= ( Extent< T, N > const &  other )

inline

Definition at line 128 of file Extent.h.

                                                        {
        this->_vector += other._vector;
        return static_cast<Extent<T,N>&>(*this);
    }

template<typename T, int N>

Extent<T,N> lsst.afw.geom::ExtentBase< T, N >::operator- ( Extent< T, N > const &  other ) const

inline

Definition at line 125 of file Extent.h.

                                                           {
        return Extent<T,N>(this->_vector - other._vector);
    }

template<typename T, int N>

Extent<T,N> lsst.afw.geom::ExtentBase< T, N >::operator- ( ) const

inline

Definition at line 137 of file Extent.h.

{ return Extent<T,N>(-this->_vector); }

template<typename T, int N>

Extent<T,N>& lsst.afw.geom::ExtentBase< T, N >::operator-= ( Extent< T, N > const &  other )

inline

Definition at line 132 of file Extent.h.

                                                        {
        this->_vector -= other._vector;
        return static_cast<Extent<T,N>&>(*this);
    }

template<typename T, int N>

Extent<T,N> lsst.afw.geom::ExtentBase< T, N >::operator/ ( T  scalar ) const

inline

Definition at line 148 of file Extent.h.

{ return Extent<T,N>(this->_vector / scalar); }

template<typename T, int N>

Extent<T,N>& lsst.afw.geom::ExtentBase< T, N >::operator/= ( T  scalar )

inline

Definition at line 149 of file Extent.h.

{ this->_vector /= scalar; return static_cast<Extent<T,N>&>(*this); }

template<typename T, int N>

bool lsst.afw.geom::ExtentBase< T, N >::operator== ( Extent< T, N > const &  other ) const

inline

Standard equality comparison.

Returns true iff all(this->eq(other));

Definition at line 79 of file Extent.h.

{ return all(this->eq(other)); }

template<typename T, int N>

std::string lsst.afw.geom::ExtentBase< T, N >::toString ( void  ) const

inline

Definition at line 155 of file Extent.h.

                               {
        std::stringstream out;
        out << "Extent(";
        for (size_t i = 0; i < N; ++i) {
            if (i != 0) {
                out << ",";
            }
            out << (*this)[i];
        }
        out << ")";
        return out.str();
    }

---

The documentation for this class was generated from the following file:

• /home/lsstsw/stack/Linux64/afw/10.0-40-g4349866+2/include/lsst/afw/geom/Extent.h
